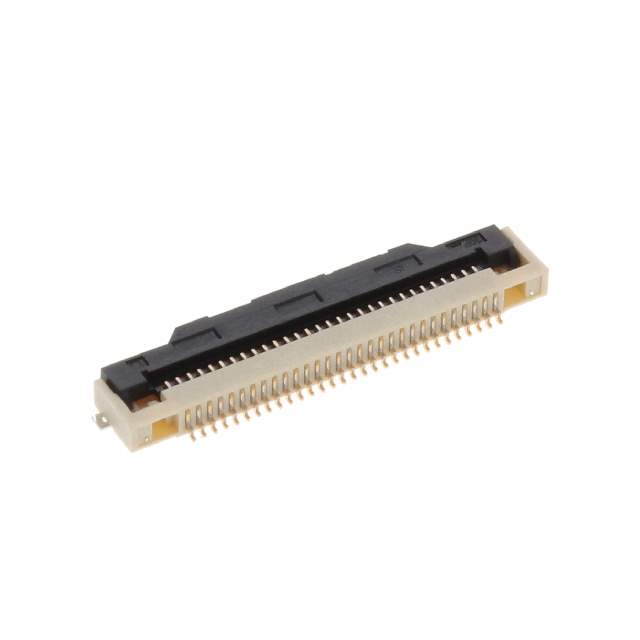

046806030000846+ Real Image
Same model may have multiple batches, images only for reference.

046806030000846+

Part No 046806030000846+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.5MM PITCH - 30 POS - RIGHT ANG / 30 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer KYOCERA AVX
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 30
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.069" (1.75mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Plastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Current Rating (Amps) 0.5A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 1253-046806030000846+DKR-ND,478-046806030000846+,478-046806030000846+CT,478-046806030000846+DKR,1253-046806030000846+DKR,478-046806030000846+-ND,478-046806030000846+TR,1253-046806030000846+CT,1253-046806030000846+TR,1253-046806030000846+TR-ND,1253-046806030000846+CT-ND
Standard Package 3,000
Win Source Part Number 1333293-046806030000846+
Ultra Librarian 3D Model Ultra Librarian 046806030000846+ CAD Model

Description

This FFC, FPC connector assembly manufactured by KYOCERA AVX is a high-quality electronic component that is suitable for various applications.

  • Positions: 30
  • Pitch: 0.020" (0.50mm)
  • Features: Solder Retention and Zero Insertion Force (ZIF)
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Package: 0402 (1005 Metric)
  • Mounting: Surface Mount Technology with Right-Angle Orientation
  • Height Above Board: 0.069" (1.75mm)
  • Standard Package: 3,000 pieces
  • Packaging: Reel
  • Cable End Type: Tabbed
  • Locking Feature: Flip Lock
  • Compliance: RoHS3 standards
  • REACH: Unaffected
