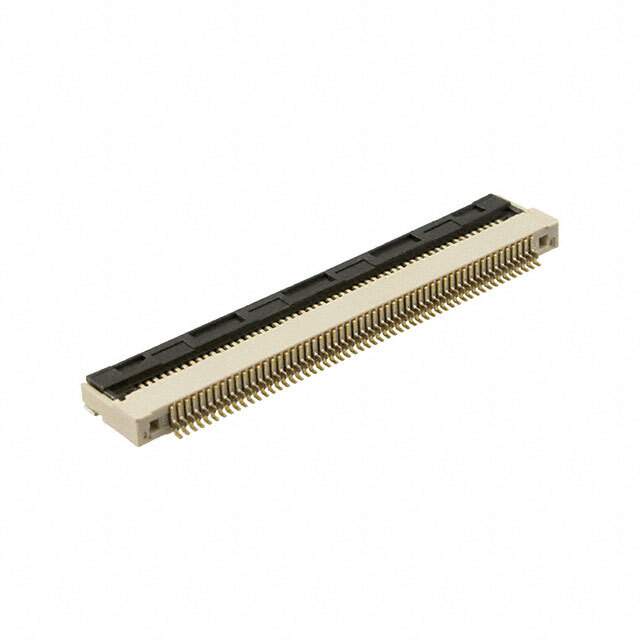

046288055000846+ Real Image
Same model may have multiple batches, images only for reference.

046288055000846+

Part No 046288055000846+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 55POS 0.50MM R/A
Datasheet
046288055000846+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer AVX Corp/Kyocera Corp
Series 6288, Kyocera
Packaging Reel package
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 55
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Plastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -40°C ~ 105°C
Current Rating 0.4A
Contact Finish Thickness 3.9μin (0.10μm)
Win Source Part Number 759975-046288055000846+
Popularity Medium
Supply and Demand Status Balance
Family Name 6288
Introduction Date June 02, 2009
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 046288055000846+ CAD Model

Description

The AVX Corp/Kyocera Corp 6288 series connector is a surface mount, right angle connector with a flip lock feature.

  • Package: Reel
  • Positions: 55
  • Pitch: 0.020" (0.50mm)
  • Housing Material: Plastic
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.9μin (0.10μm)
  • Voltage Rating: 50V
  • Current Rating: 0.4A
  • Flat Flex Type: FFC, FPC
  • Flat Flex Thickness: 0.30mm
  • Operating Temperature: -40°C to 105°C
  • Zero Insertion Force (ZIF): Yes
  • Solder Retention: Yes
  • Contacts: Bottom
  • Estimated EOL Date: 2026
