Same model may have multiple batches, images only for reference.

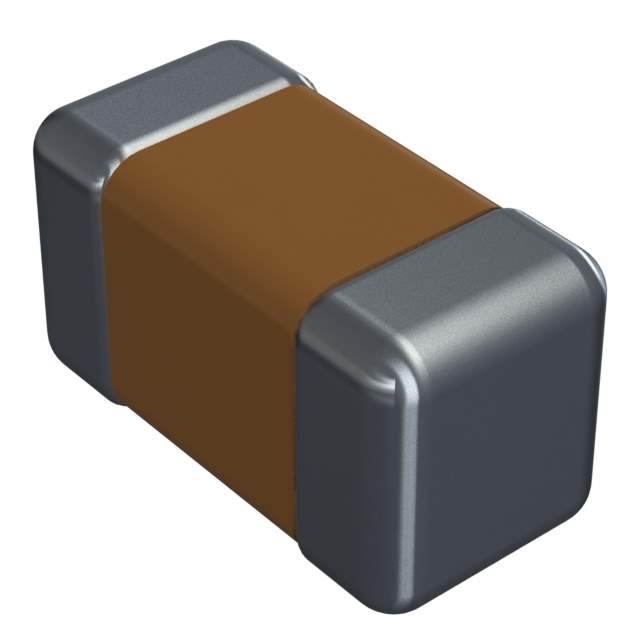

02013A220JAT2A Real Image
Same model may have multiple batches, images only for reference.

02013A220JAT2A

Part No 02013A220JAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 22PF 25V C0G/NP0 0201 / 22 pF ±5% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric)
Datasheet
02013A220JAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Package Tape & Reel
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 25V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0201 (0603 Metric)
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Thickness (Max) 0.013" (0.33mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 478-1018-1,478-1018-2,478-1018-6,02013A220JAT2A/15K,02013A220JAT2A\\15K
Standard Package 15,000
Win Source Part Number 1187432-02013A220JAT2A
Ultra Librarian 3D Model Ultra Librarian 02013A220JAT2A CAD Model

Description

This is a ceramic capacitor with a capacitance of 22 pF and a voltage rating of 25V. It has a tolerance of ±5% and a temperature coefficient of C0G, NP0.

  • Package: Tape & Reel
  • Mounting Type: Surface Mount, MLCC
  • Dimensions: 0.024" L x 0.012" W (0.60mm x 0.30mm)
  • Thickness: 0.013" (0.33mm)
  • Application: General-Purpose
  • Operating Temperature: -55°C ~ 125°C
  • Manufacturer: KYOCERA AVX
  • Alternative Parts: 02013A220JAT2A, 02013A220JAT2A/15K, 02013A220JAT2A15K
