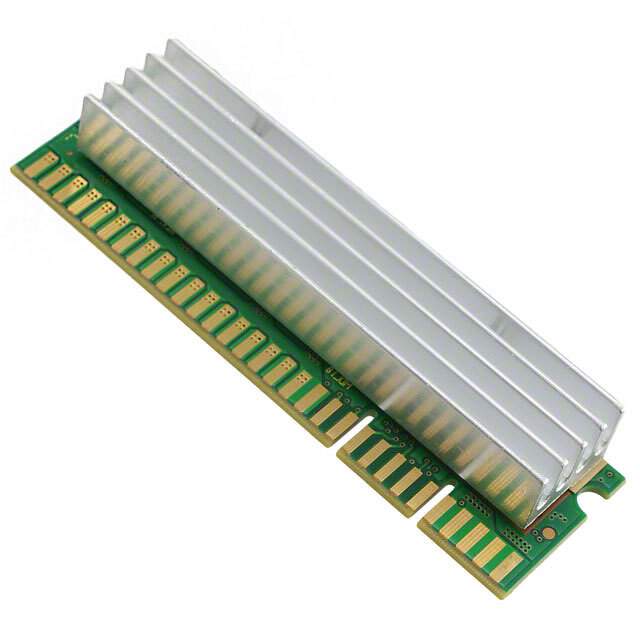

VRM10-80-12-PJ

Part No VRM10-80-12-PJ
Manufacturer Artesyn Embedded Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 80A 0.8375-1.6V OUT / Module DC-DC 12VIN 1-OUT 0.8375V to 1.6V 80A 54-Pin
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Artesyn Embedded Technologies
Series VRM10
Packaging Bulk
Part Status Obsolete(EOL)
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 11V
Voltage Input MAX 12.6V
Voltage - Output 1 1.9V
Current - Output (Maximum) 80A
Power (Watts) 149W
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP, UVLO
Operating Temperature Range 0°C ~ 60°C
Efficiency 85%
Mounting Card Edge
Dimension 3.19" L x 0.77" W x 1.24" H (81.0mm x 19.6mm x 31.5mm)
Win Source Part Number 799195-VRM10-80-12-PJ
Popularity Medium
Supply and Demand Status Limited
Family Name VRM10-80-12
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VRM10-80-12-PJ CAD Model

Description

VRM10-80-12-PJ from Artesyn Embedded Technologies is a board-mount DCDC converter designed for embedded power architectures where compact conversion, distributed regulation, and reliable onboard power delivery are important. Components in this category are commonly evaluated for telecom, networking, industrial control, test equipment, and other electronic systems that need localized DC power conversion close to the load. Engineers typically choose board-mount converters like this to support power rail design flexibility, improve system integration, and simplify power stage implementation in dense assemblies. For design, maintenance, and procurement teams, this part may be relevant in both new-build evaluations and legacy platform support, especially where footprint and power topology compatibility matter. The current lifecycle status for VRM10-80-12-PJ is information not available, so long-term supply planning should be confirmed directly with the manufacturer or authorized sources. RoHS compliance information is also not available in the provided data and should be verified against the latest datasheet, declaration, or manufacturer compliance documentation.
