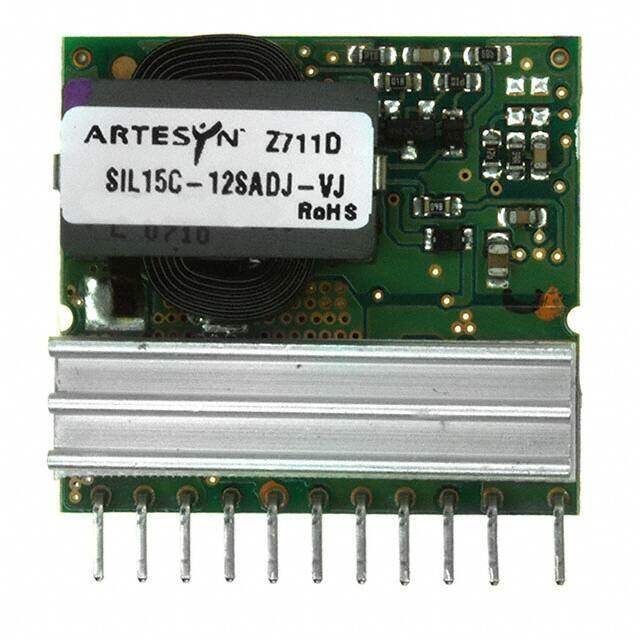

SIL15C-12SADJ-VJ

Name: SIL15C-12SADJ-VJ
Brand: Artesyn Embedded Technologies
SKU: 667272
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SIL15C-12SADJ-VJ
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.9-5V 75W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Technologies
Series	SIL15C (75W)
Package	Tray
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.2V
Voltage - Input (Max)	13.8V
Voltage - Output 1	0.9 ~ 5V
Current - Output (Max)	15A
Power (Watts)	75 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	0°C ~ 80°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	11-SIP Module
Size / Dimension	1.20" L x 0.40" W x 1.10" H (30.5mm x 10.2mm x 27.9mm)
Standard Package	210 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	667272-SIL15C-12SADJ-VJ
Ultra Librarian 3D Model	Ultra Librarian SIL15C-12SADJ-VJ CAD Model

Alternative Products

Description

The SIL15C-12SADJ-VJ is a non-isolated PoL module from the SIL15C series by Artesyn Embedded Technologies.

Power Supply Board Mount DC-DC converter
Designed for ITE (Commercial) applications
Remote On/Off function
Overcurrent protection (OCP)
Short Circuit Protection (SCP)
Power output: 75W
Maximum output current: 15A
Input voltage range: 10.2V to 13.8V
Output voltage can be adjusted: 0.9V to 5V
High Efficiency: 91%
Mounted: Through Hole
Size: 1.20" L x 0.40" W x 1.10" H
Package: 11-SIP module
Operates in a temperature range: 0°C to 80°C
Obsolete
Moisture Sensitivity Level: 1 (unlimited)
