Same model may have multiple batches, images only for reference.

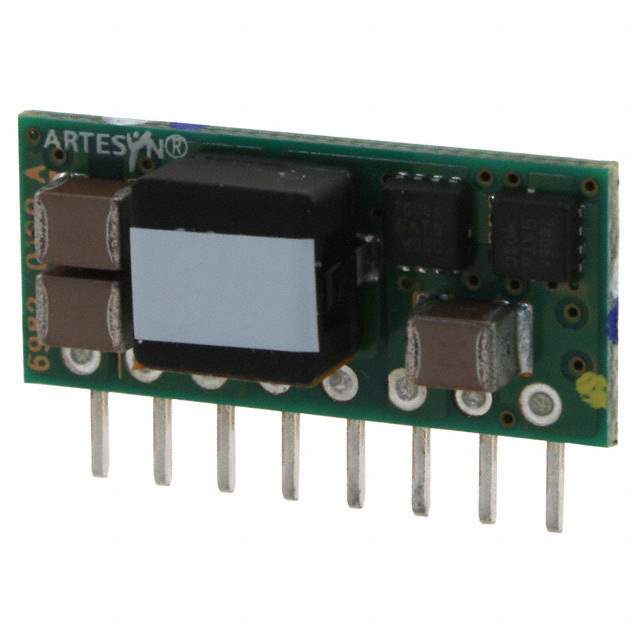

PTV12010LAD Real Image
Same model may have multiple batches, images only for reference.

PTV12010LAD

Part No PTV12010LAD
Manufacturer Artesyn Embedded Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 12 VIN ADJOUT 8A
Datasheet
PTV12010LAD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Artesyn Embedded Technologies
Series PTV12010
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 10.8V
Voltage Input MAX 13.2V
Voltage - Output 1 0.8 ~ 1.8 V
Current - Output (Maximum) 8A
Power (Watts) 15W
Applications ITE (Commercial)
Features Remote On/Off, OCP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 87%
Mounting Style Through Hole
Package 8-SIP Module
Dimension 0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm)
Win Source Part Number 792727-PTV12010LAD
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTV12010LAD CAD Model

Description

The PTV12010LAD is a non-isolated PoL module manufactured by Artesyn Embedded Technologies.

  • Supply and Demand Status: Limited
  • Win Source Part Number: 792727-PTV12010LAD
  • Remote On/Off: Yes
  • OCP: Yes
  • UVLO: Yes
  • Applications: ITE (Commercial)
