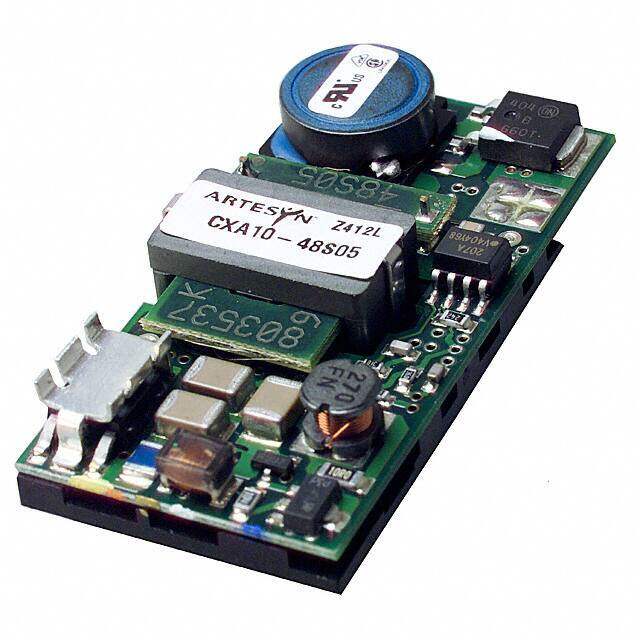

Same model may have multiple batches, images only for reference.

CXA10-48S05

Name: CXA10-48S05
Brand: Artesyn Embedded Technologies
SKU: 867500
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CXA10-48S05
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 18V - 75V Input
Datasheet	CXA10-48S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Technologies
Series	CXA10 (10W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	81%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 10.0mm)
Standard Package	50 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	867500-CXA10-48S05
Ultra Librarian 3D Model	Ultra Librarian CXA10-48S05 CAD Model

Alternative Products

Description

The Artesyn Embedded Technologies electronic component with the Win Source Part Number 867500-CXA10-48S05 is a DC-DC converter in the category of Power Supplies - Board Mount - DC DC Converters. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

Series: CXA10 (10W)
Type: Isolated Module
Features: Overvoltage Protection (OVP), Short Circuit Protection (SCP), and Undervoltage Lockout (UVLO)
Size / Dimension: 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 10.0mm)
Applications: ITE (Commercial)
Standard Package: 50 pieces
Power (Watts): 10W
Isolation: 1.5kV
Number of Outputs: 1
Output Current: 2A (Max)
Input Voltage: 18V to 75V
Output Voltage: 5V
Efficiency: 81%
Mounting Type: Through Hole
Package Case: 6-DIP Module
Operating Temperature: -40°C to 70°C
ECCN: EAR99
HTSUS Code: 8504.40.9580
Manufacturer: Artesyn Embedded Technologies
Status: Obsolete
