Same model may have multiple batches, images only for reference.

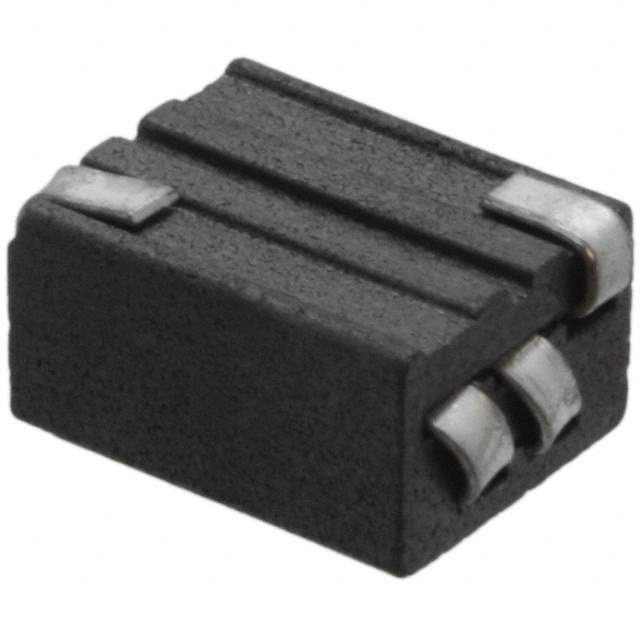

SMB2.5R-1 Real Image
Same model may have multiple batches, images only for reference.

SMB2.5R-1

Part No SMB2.5R-1
Manufacturer API Delevan Inc.
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 385 OHM 2SMD 1LN / Ferrite Beads Chip 385Ohm 100MHz 9.5A 0.005Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer API Delevan Inc.
Series SMB2.5R
Packaging Reel package
Number of Lines 1
Impedance @ Frequency 385 Ohm @ 100MHz
Current Rating (Maximum) 9.5A
DC Resistance (DCR) (Maximum) 5 mOhm
Operating Temperature Range -40°C ~ 125°C
Package 2-SMD, J-Lead
Mounting SMD
Height (Maximum) 0.200" (5.08mm)
Dimension 0.460" L x 0.283" W (11.68mm x 7.20mm)
Win Source Part Number 794632-SMB2.5R-1
Popularity Medium
Supply and Demand Status Limited
Family Name SMB2.5R
Introduction Date September 01, 2004
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SMB2.5R-1 CAD Model

Description

The SMB2.5R series from API Delevan Inc. is a 2-SMD, J-Lead package filter, suitable for use in electronic components.

  • Filter Type: Not Specified
  • Number of Lines: 1
  • Impedance: 385 Ohm @ 100MHz
  • Current Rating: 9.5A
  • DC Resistance (DCR): 5 mOhm (Max)
  • Dimensions: 0.460" L x 0.283" W (11.68mm x 7.20mm)
  • Height: 0.200" (5.08mm) (Max)
  • Operating Temperature Range: -40°C to 125°C
  • Series: Filters
  • Package Type: Reel
  • Estimated EOL Date: 2026
  • Popularity: Medium
  • Supply and Demand Status: Limited
