Same model may have multiple batches, images only for reference.

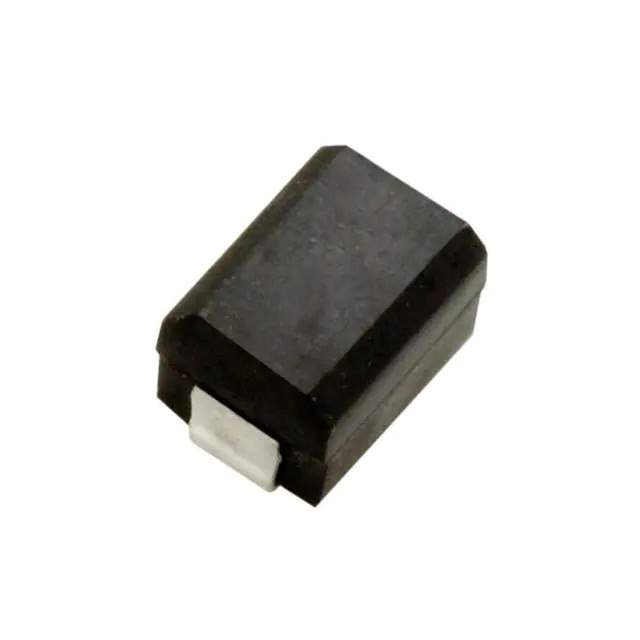

S1812-105K Real Image
Same model may have multiple batches, images only for reference.

S1812-105K

Part No S1812-105K
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 1MH 60MA 55 OHM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr API Delevan Inc.
Series S1812
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 1 mH
Tolerance ±10%
Current Rating (Amps) 60 mA
Shielding Shielded
DC Resistance (DCR) 55Ohm Max
Q @ Freq 40 @ 790kHz
Frequency - Self Resonant 2MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 790 kHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.134" (3.40mm)
Standard Package 500 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 662283-S1812-105K
Ultra Librarian 3D Model Ultra Librarian S1812-105K CAD Model

Description

The 662283-S1812-105K is a fixed inductor from API Delevan Inc.

  • Series: S1812 series
  • Design: Shielded
  • Package: Tape and reel
  • Size: 0.177" L x 0.126" W
  • Inductance: 1mH
  • Tolerance: ±10%
  • Seated Height: 0.134" (max)
  • Core Material: Ferrite
  • Q Value: 40 @ 790kHz
  • Self-Resonant Frequency: 2MHz
  • Mounting: Surface mountable
  • Package/Case Size: 1812 (4532 Metric)
  • DC Resistance (DCR): 55Ohm max
  • Operating Temperature: -55°C to 125°C
