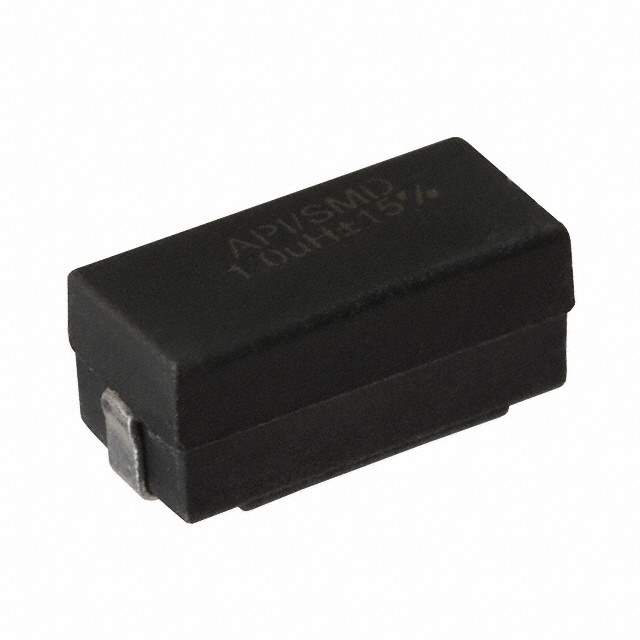

Same model may have multiple batches, images only for reference.

4922-25L

Name: 4922-25L
Brand: API Delevan Inc.
SKU: 763752
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	4922-25L
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 100UH 760MA 672 MOHM
Datasheet	4922-25L Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	API Delevan Inc.
Series	4922
Packaging	Reel package
Type	Wirewound
Material - Core	Ferrite
Inductance	100μH
Tolerance	±15%
Current Rating	760mA
Current - Saturation	760mA
Shielding	Unshielded
DC Resistance (DCR)	672 mOhm Max
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	1kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Maximum)	0.230" (5.84mm)
Win Source Part Number	763752-4922-25L
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 4922-25L CAD Model

Alternative Products

Description

This API Delevan Inc. inductor is a wirewound type in the 4922 series.

Inductance: 100μH
Tolerance: ±15%
Package: Nonstandard
Temperature Range: -55°C to 125°C
Core Material: Ferrite
Current Saturation: 760mA
Dimensions: 0.505 inches x 0.240 inches
Height: 0.230 inches
Compliance: RoHS
Popularity: Medium
Supply and Demand Status: Balance
