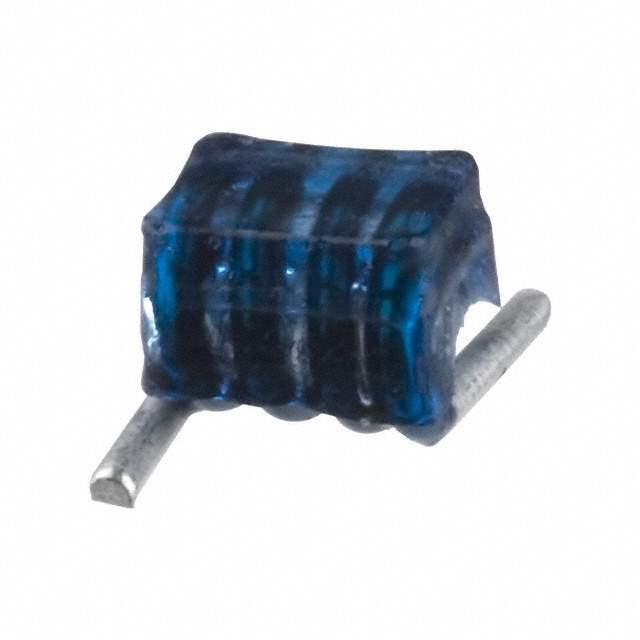

4426R-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer API Delevan Inc.
Series 4426R
Packaging Reel package
Type Wirewound
Material - Core Air
Inductance 8nH
Tolerance ±5%
Current Rating 3A
Shielding Unshielded
Q @ Freq 140 @ 150MHz
Frequency - Self Resonant 3GHz
Operating Temperature Range -55°C ~ 125°C
Test Frequency 150MHz
Mounting SMD
Package Nonstandard
Dimension 0.145" L x 0.120" W (3.68mm x 3.05mm)
Height - Seated (Maximum) 0.125" (3.18mm)
Win Source Part Number 763653-4426R-3
Family Name 4426R
Introduction Date August 31, 2004
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4426R-3 CAD Model

Description

The API Delevan Inc. 4426R-3 is a wirewound inductor that has an inductance of 8nH and a current rating of 3A.

  • Type: Wirewound Inductor
  • Inductance: 8nH
  • Current Rating: 3A
  • Shielding: Unshielded
  • Tolerance: ±5%
  • Frequency: 150MHz
  • Dimension: 0.145" L x 0.120" W (3.68mm x 3.05mm)
  • Mounting: SMD
  • Temperature Range: -55°C to 125°C
  • Package: Nonstandard
  • Supply and Demand Status: Limited
