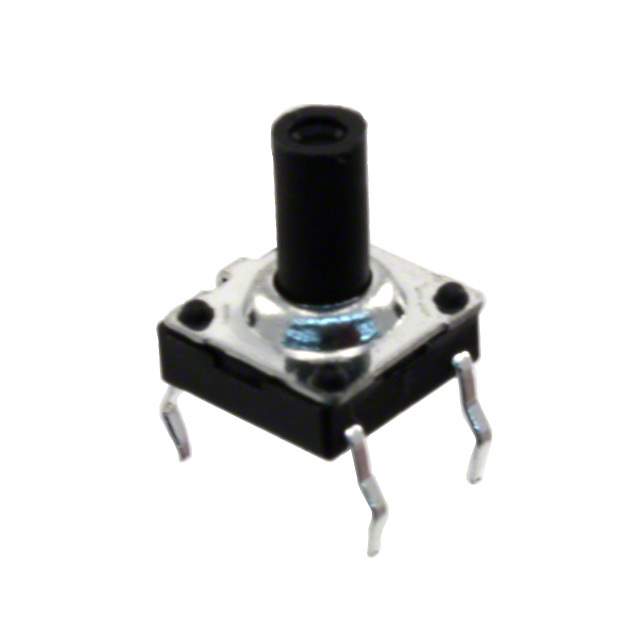

Same model may have multiple batches, images only for reference.

MJTP1109A

Name: MJTP1109A
Brand: Apem Inc.
SKU: 797763
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MJTP1109A
Manufacturer	Apem Inc.
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Bulk
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Manufacturer	Apem Inc.
Series	MJTP
Packaging	Bulk
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Style	Through Hole
Actuator Height off PCB, Vertical	9.00mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	7.20mm x 7.20mm
Illumination	Non-Illuminated
Operating Force	200gf
Features	Tactile Feedback
Actuator Material	Thermoplastic
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Operating Temperature Range	-20°C ~ 70°C
Win Source Part Number	797763-MJTP1109A
Popularity	Medium
Supply and Demand Status	Limited
Family Name	MJTP
Introduction Date	June 15, 1998
ECCN	EAR99
Country of Origin	Denmark
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian MJTP1109A CAD Model

Description

The MJTP1109A is a Apem Inc. switch manufactured by Apem Inc.

Series: MJTP
Win Source Part Number: 797763
Mounting: through-hole
Termination Style: PC pin
Operating Temperature Range: -20°C to 70°C
Feedback: tactile
Switch Function: SPST-NO
Switch Function: off-mom
Actuator Type: standard
Switch Travel: 0.25mm
Contact Rating: 0.05A @ 12VDC
Operating Force: 200gf
Mechanical Life: 100,000 cycles
Supply and Demand Status: limited
