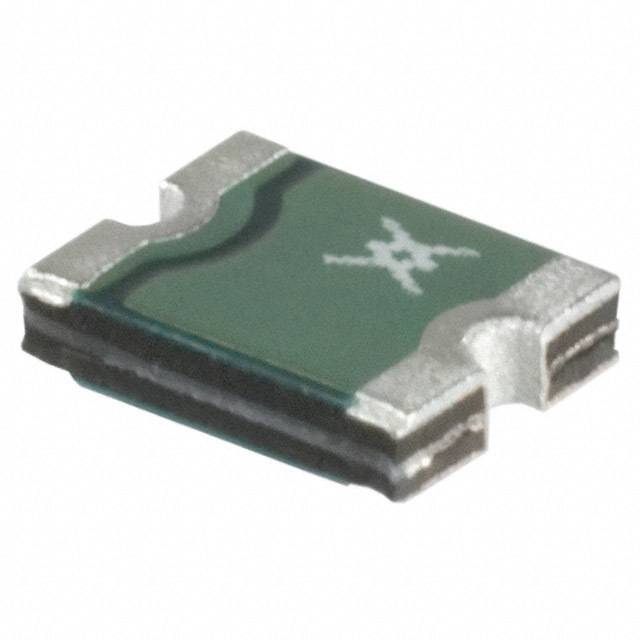

MICROSMD010F-2 Littelfuse Inc. MICROSMD010F-2 Real Image
Same model may have multiple batches, images only for reference.
MICROSMD010F-2 Littelfuse Inc. MICROSMD010F-2 Real Image
MICROSMD010F-2 Littelfuse Inc. MICROSMD010F-2 Real Image
Same model may have multiple batches, images only for reference.

MICROSMD010F-2

Part No MICROSMD010F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH 0.10A RESET FUSE SMD
Datasheet
MICROSMD010F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 10A
Current - Hold (Ih) (Max) 100mA
Current - Trip (It) 250mA
Time to Trip 1s
Resistance - Initial (Ri) (Min) 2.1 Ohm
Resistance - Post Trip (R1) (Max) 15 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.019" (0.48mm)
Approvals CSA, TUV, UL
Win Source Part Number 023346-MICROSMD010F-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Safety, Consumer Electronics, Portable Devices, Multimedia, Automotive, Industrial
Family Name MICROSMD
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MICROSMD010F-2 CAD Model

Description

The Littelfuse Inc. MICROSMD010F-2 is a polymeric type circuit protection SMD (SMT) device that has CSA, TUV, and UL approvals.

  • Supply and Demand Status: limited
  • Applications: safety, consumer electronics, portable devices, multimedia, automotive, and industrial
  • Dimension: 0.127" L x 0.102" W (3.22mm x 2.58mm)
  • Thickness (max): 0.019" (0.48mm)
  • Operating Temperature Range: -40 degrees Celsius to 85 degrees Celsius
  • Manufacturer: Littelfuse Inc.
