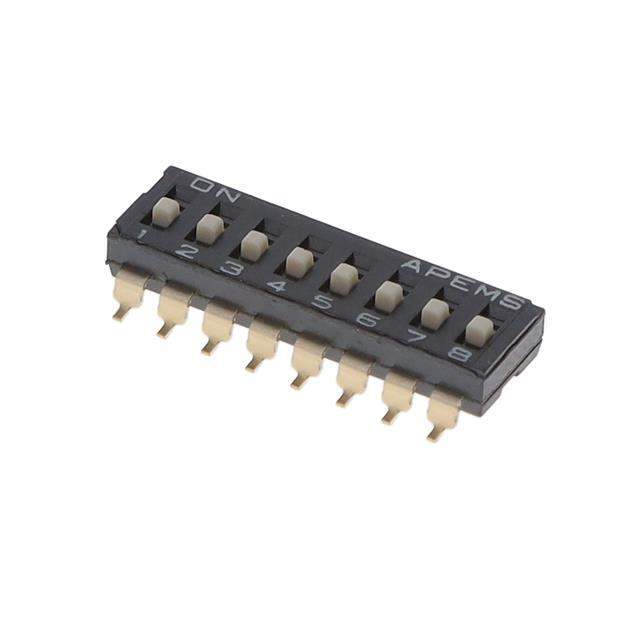

DM08 Real Image
Same model may have multiple batches, images only for reference.

DM08

Part No DM08
Manufacturer Apem Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr APEM Inc.
Series DM
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.173" (4.40mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS), Glass Filled
Length 0.837" (21.26mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 679-4008,DM08-ND
Standard Package 22
Win Source Part Number 1055610-DM08
Ultra Librarian 3D Model Ultra Librarian DM08 CAD Model

Description

The APEM Inc. DM08 is an 8-position SPST slide DIP switch that is designed to be mounted on a PCB.

  • Pitch: 0.100" (2.54mm)
  • Termination Style: gull wing
  • Contact Material: copper alloy
  • Contact Finish: gold
  • Height Above Board: 0.173" (4.40mm)
  • Length: 0.837" (21.26mm)
  • RoHS Compliant: yes
  • Temperature Range: -20°C to 85°C
  • Mechanical Life: 2,000 cycles
  • Electrical Life: 2,000 cycles
  • Washable: yes
  • Actuator Level: raised
