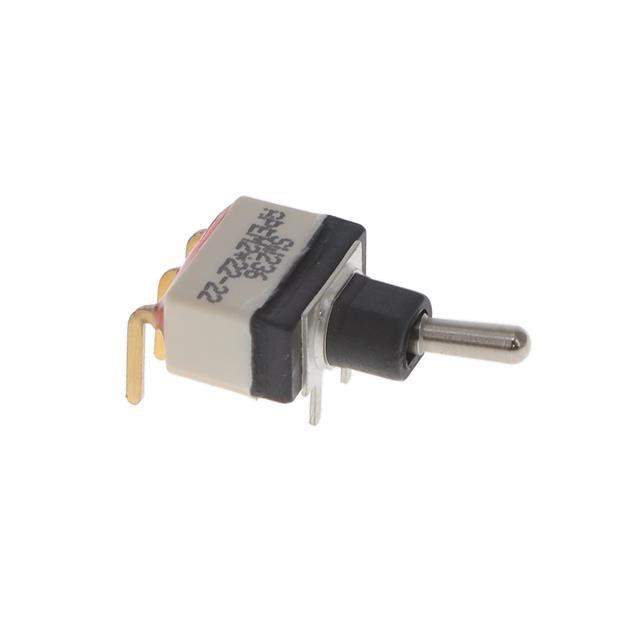

SW236CD7 Real Image
Same model may have multiple batches, images only for reference.

SW236CD7

Part No SW236CD7
Manufacturer Apem Inc.
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V / Toggle Switch SPDT Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr APEM Inc.
Series S
Package Bulk
Mounting Type Through Hole, Right Angle
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 7.50mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Sealed
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number SW236
Other Names Q9714613
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1232927-SW236CD7
Ultra Librarian 3D Model Ultra Librarian SW236CD7 CAD Model

Description

The SW236CD7 is a sealed toggle switch from the S series of switches.

  • Manufacturer: APEM Inc.
  • Product Name: SW236CD7
  • Series: S
  • Circuit: SPDT
  • Switch Function: On-On
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 20V (AC/DC)
  • Actuator Material: Brass and Chrome Plated
  • Actuator Length: 7.50mm
  • Panel Cutout Dimension: -
  • Package: Bulk Package of 50
  • Mounting: Through Hole
  • Mounting Type: Right-Angle
  • Illumination Type: Non-Illuminated
  • Ingress Protection: -
  • Electrical Life: 100,000 cycles
  • Temperature Range: -20°C to 85°C
  • REACH: Unaffected
