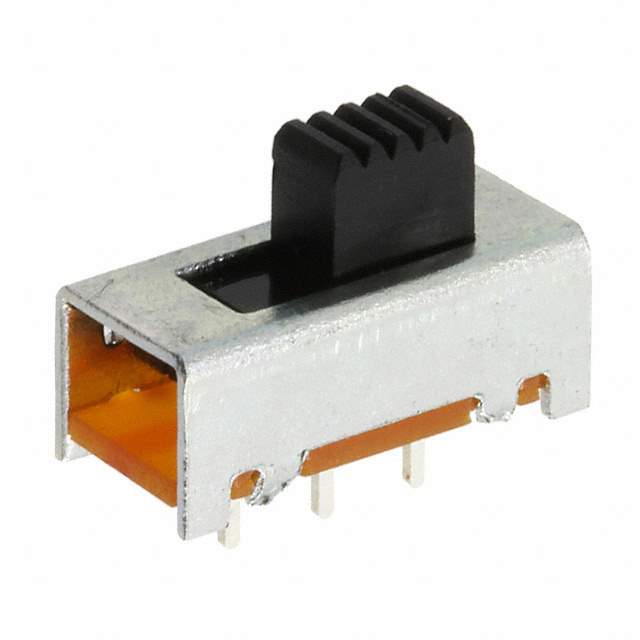

SLB12814 Real Image
Same model may have multiple batches, images only for reference.

SLB12814

Part No SLB12814
Manufacturer Apem Inc.
Catalog Slide Switches
Description SWITCH SLIDE SPDT 300MA 125V / Slide Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr APEM Inc.
Series SLB
Package Bulk
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 300mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Thermoplastic
Switch Travel 3.20mm
Electrical Life 10,000 Cycles
Operating Force 220gf
Other Names SLB12814,679-3547
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233216-SLB12814
Ultra Librarian 3D Model Ultra Librarian SLB12814 CAD Model

Description

The APEM Inc. SLB12814 is a slide switch electronic component that belongs to the SLB series.

  • Termination Style: PC pin
  • Terminals: Epoxy-sealed
  • Contact Finish: Silver
  • Package: Bulk
  • Current Rating: 300mA (AC/DC)
  • Operating Force: 220gf
  • Electrical Life: 10,000 cycles
  • Temperature Range: -20°C to 85°C
