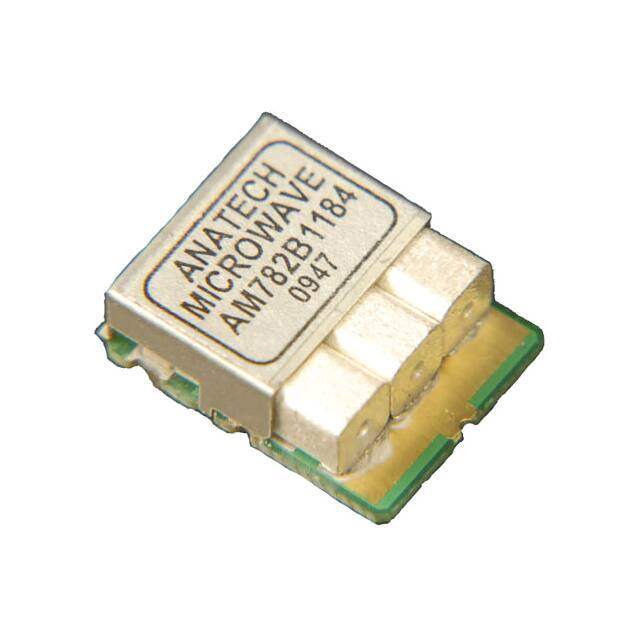

AM782B1184 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Ceramic Filters
Mfr Anatech Electronics Inc.
Package Tape & Box (TB)
Product Status Active
Frequency 782MHz Center
Impedance 50Ohm
Bandwidth 10 MHz
Insertion Loss 4dB
Filter Type Band Pass
Mounting Type Surface Mount
Package / Case 8-SMD Module
Size / Dimension 0.669" L x 0.512" W (17.00mm x 13.00mm)
Height (Max) 0.217" (5.50mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0000
Win Source Part Number 854948-AM782B1184
Ultra Librarian 3D Model Ultra Librarian AM782B1184 CAD Model

Description

The 854948-AM782B1184 is a ceramic filter used in electronic applications.

  • Category: Filters - Ceramic Filters
  • Filter Type: Band Pass
  • Impedance: 50Ohm
  • Center Frequency: 782MHz
  • Insertion Loss: 4dB
  • Size: 0.669" L x 0.512" W (17.00mm x 13.00mm)
  • Mounting Type: Surface Mount
  • Package/Case: 8-SMD Module
  • Height: 0.217" (5.50mm)
  • Bandwidth: 10MHz
  • Manufacturer: Anatech Electronics Inc.
  • Status: Active
