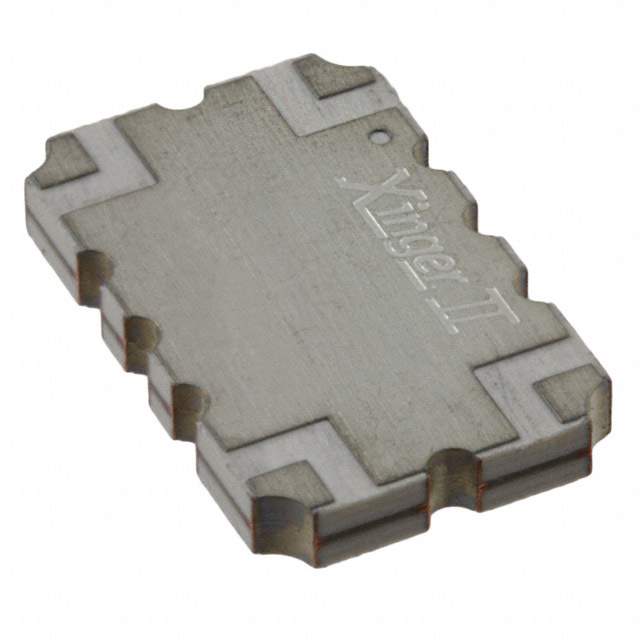

The Anaren XC0900A-10SR is a high-performance, low-profile Xinger® brand 900 MHz surface mount coupler. This coupler is designed for demanding applications where minimal size and exceptional performance are required. It offers tight coupling, low insertion loss, and high isolation, making it suitable for various wireless communication systems.

Applications:

• Wireless Base Stations
• Public Safety Radio
• ISM Band Applications
• Satellite Communication Systems
• RFID Systems

Features:

• Surface Mountable
• Low Insertion Loss
• High Isolation
• Tight Coupling
• Small Footprint
• Operating Temperature: -55°C to +105°C
• Xinger® Brand Quality

Benefits:

• Improved system performance due to low insertion loss and high isolation.
• Reduced board space requirements due to its small footprint.
• Enhanced reliability in harsh environments because of its wide operating temperature range.
• Simplified assembly with surface mount compatibility.
• Consistent performance is ensured by tight coupling.

Additional Details:

The XC0900A-10SR features a compact design suitable for automated assembly. Its robust construction ensures reliable performance in demanding environments. It's designed to handle up to 10 Watts of power. The coupler provides a nominal coupling value of 10 dB. The frequency range is specified around 900 MHz, specifically optimized for the ISM band. The package is lead-free and RoHS compliant.

This coupler is ideal for applications where signal splitting or combining is required with minimal signal degradation. Its tightly controlled coupling factor ensures predictable performance in critical signal paths. The small size allows for easy integration into densely populated circuit boards.
