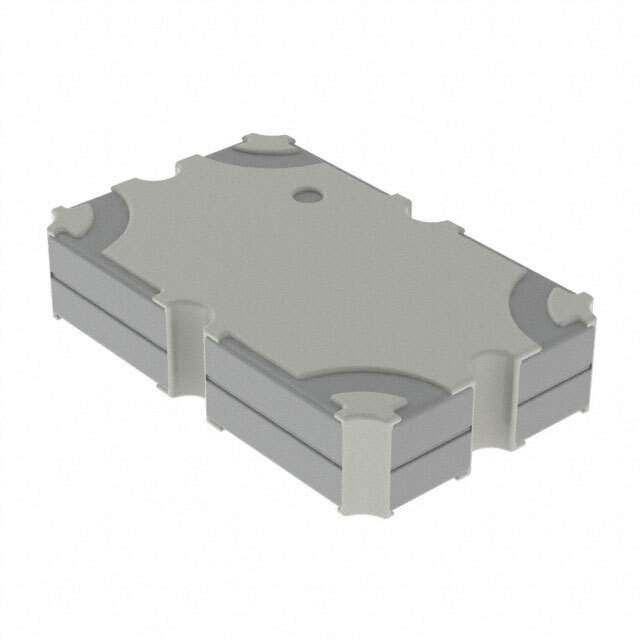

The Anaren X3C19F1-03SR is a surface mount directional coupler designed for use in RF and microwave applications. Directional couplers are passive devices that sample a defined amount of the electromagnetic power in a transmission line. They are widely used for monitoring power levels, signal injection, and combining signals with minimal interference.

Applications

• Power Monitoring: Measures forward and reflected power in RF systems.
• Signal Sampling: Samples a small portion of a signal for testing or control purposes.
• VSWR Measurement: Used in measuring Voltage Standing Wave Ratio (VSWR).
• Signal Injection: Injects a signal into a transmission line for testing or calibration.
• Combining Signals: Combines two or more signals while maintaining isolation.

Features

• Surface Mount Technology: Allows for easy and efficient PCB assembly.
• Compact Size: Saves valuable board space in high-density applications.
• High Directivity: Provides excellent isolation between ports.
• Low Insertion Loss: Minimizes signal attenuation, preserving signal integrity.
• Wide Frequency Band: Operates over a broad frequency range.

Benefits

• Precise Power Measurement: Enables accurate monitoring of RF power levels.
• Improved Signal Integrity: Minimizes signal distortion and interference.
• Simplified Assembly: Surface mount design reduces manufacturing costs.
• Reliable Performance: Provides consistent and dependable operation.
• Versatile Applications: Suitable for various RF and microwave systems.

Additional Details

The X3C19F1-03SR directional coupler is characterized by its specific coupling factor, which determines the amount of power that is coupled from the input signal to the coupled port. It is designed to maintain low insertion loss and high directivity within its specified frequency range. The device is constructed using high-quality materials to ensure reliable performance and long operational life. The surface mount design allows for automated assembly, making it suitable for high-volume production.
