Product Overview: TMP35GRTZ-REEL7

The TMP35GRTZ-REEL7 is a precision centigrade temperature sensor from Analog Devices Inc. that offers a linear temperature proportional voltage output. This sensor requires no external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the -40°C to +125°C temperature range. Its low output impedance, linear output, and precise inherent calibration make interfacing to readout or control circuitry especially easy.

Key Features

• Voltage Output: The TMP35GRTZ-REEL7 provides a 10 mV/°C scale factor output, which allows for easy temperature monitoring without the need for additional signal conditioning.
• Wide Temperature Range: This sensor operates over a temperature range of -40°C to +125°C, catering to a broad spectrum of applications.
• Low Power: With a quiescent current of less than 50 µA, the TMP35GRTZ-REEL7 is optimized for low power applications and battery-powered systems.
• Calibration: The sensor is factory-calibrated and does not require any external components for calibration, simplifying the design process.

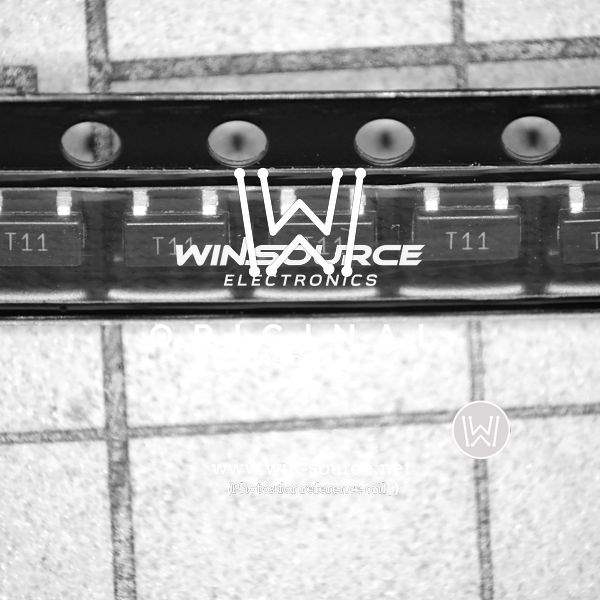

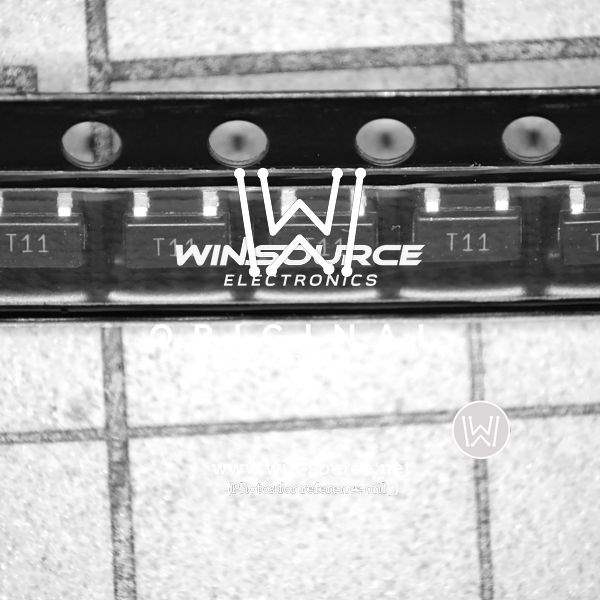

• Package: It comes in a small SOT-23 package, making it suitable for space-constrained applications.
• Supply Voltage: It operates from a single 2.7 V to 5.5 V supply, making it compatible with most control logic and power sources.

Applications

The TMP35GRTZ-REEL7 is versatile and can be used in numerous applications, including:

• Environmental Control Systems
• Temperature Monitoring Systems
• Computer Thermal Monitoring
• Thermal Protection & Management
• Industrial Process Control
• Battery Management
• Appliances and Consumer Electronics

Product Specifications

Parameter Value Accuracy ±1°C (typical at +25°C) Temperature Range -40°C to +125°C Supply Voltage 2.7 V to 5.5 V Package SOT-23 Quiescent Current

Overall, the TMP35GRTZ-REEL7 from Analog Devices Inc. is an ideal choice for anyone looking for a reliable, low-power temperature sensor with a straightforward interface and a wide range of applications.
