SSM2306CPZ-REEL

Part No SSM2306CPZ-REEL
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Audio
Description 2 W, Filterless, Class-D Stereo Audio Amplifier | IC AMP AUDIO 2.4W STER D 16LFCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Tape and Reel
Type Class D
Output Type 2-Channel (Stereo)
Max Output Power x Channels at Load 2.4W x 2 at 4Ohm
Supply Voltage (V) 2.5V ~ 5V
Features Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
Mounting Style SMD
Temperature Range - Operating -40°C ~ 85°C

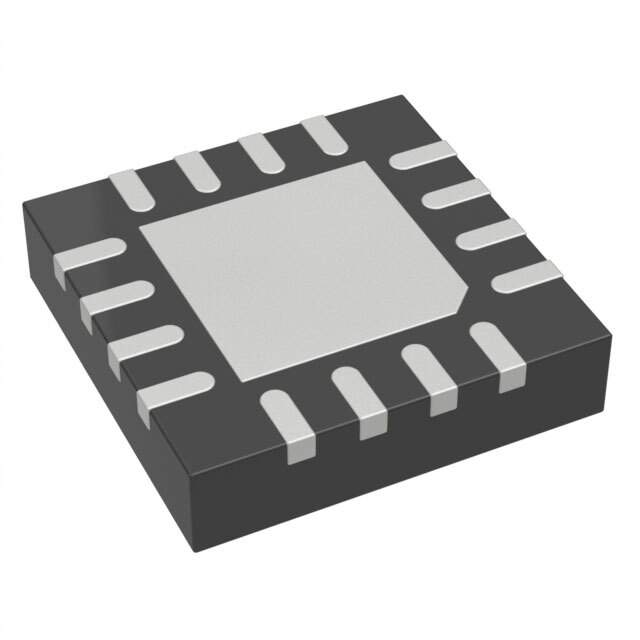

Supplier Device Package 16-LFCSP-WQ (3x3)
Manufacturer Package 16-WFQFN Exposed Pad, CSP
Family Part Number SSM2306
Manufacturer Pack Quantity 5,000
MSL Level 3 (168 Hours)
Win Source Part Number 1259448-SSM2306CPZ-REEL
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SSM2306CPZ-REEL CAD Model

Description

The SSM2306CPZ-REEL is a high-quality, audio amplifier integrated circuit (IC) designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This particular product is part of the SSM2306 series, which is known for its low power consumption and high efficiency, making it an excellent choice for portable and battery-powered applications.

Key Features:

  • Class-D Amplifier: The SSM2306CPZ-REEL operates as a Class-D amplifier, which provides high efficiency over a wide range of load conditions. This helps to minimize power loss and heat generation, making it suitable for compact and enclosed designs.
  • Output Power: It is capable of delivering 2.8W of continuous output power into a 4Ω load with less than 10% THD+N, ensuring clear and powerful audio performance.
  • Single-Supply Operation: This IC operates on a single supply voltage ranging from 2.5V to 5.5V, which allows for flexibility in various design architectures and simplifies the power supply design.
  • Filterless Design: The SSM2306CPZ-REEL does not require an external output filter, which reduces external component count and board space, while also simplifying the overall design.
  • Robust Protection Features: It includes built-in features such as over-temperature protection, short-circuit protection, and under-voltage lockout, which enhance the reliability and longevity of the end product.

Applications:

The SSM2306CPZ-REEL is versatile and can be used in a variety of audio applications. It is particularly well-suited for portable devices, such as:

  • Mobile Phones
  • Tablets
  • Portable Media Players
  • Wireless Speakers
  • Laptop and Notebook Computers

With its compact packaging, the SSM2306CPZ-REEL is supplied in a reel format, facilitating mass production and ease of integration into automated manufacturing processes. The combination of its small form factor, efficiency, and robust protection features makes the SSM2306CPZ-REEL an ideal choice for designers looking to enhance the audio capabilities of their next-generation portable devices.
