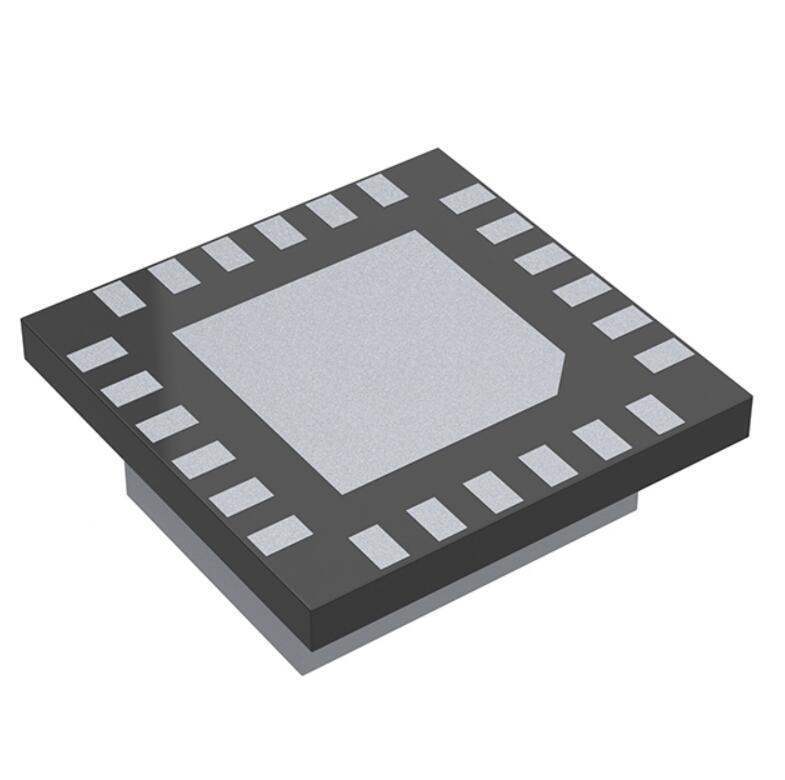

Product Overview: MAXM17635AMG+T by Analog Devices Inc.

The MAXM17635AMG+T is a highly integrated, high-efficiency, synchronous step-down DC-DC power module from Analog Devices Inc., designed to deliver robust performance in a compact package. This power solution simplifies the design process for a wide range of applications by integrating the inductor, switches, controller, and compensation in a single system-in-package (SiP). Its versatility makes it ideal for space-constrained applications that require a reliable power source.

Key Features

• Input Voltage Range: The module operates over a wide input voltage range of 4.5V to 36V, making it suitable for various industrial, automotive, and telecommunications power systems.
• Output Voltage Range: It provides an adjustable output voltage from 0.9V to 12V, accommodating a broad spectrum of low-voltage electronics.
• High Efficiency: The MAXM17635AMG+T is optimized for high efficiency, which translates to reduced heat generation and improved reliability of the end application.
• Integrated Components: With an inductor and power switches included, this module reduces external component count, saving board space and simplifying the overall design process.
• Thermal Management: The module's excellent thermal performance ensures stability and longevity even in environments with limited airflow or elevated temperatures.
• Protection Features: It comes with built-in over-temperature, over-current, and under-voltage lockout protections, safeguarding the system against common electrical faults.

Applications

The MAXM17635AMG+T is a versatile power solution that can be used in a variety of applications, including:

• Industrial automation and control systems
• Automotive electronics and infotainment systems
• Telecommunications equipment
• Point-of-load power supplies
• Space-constrained applications requiring a compact power source

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the MAXM17635AMG+T is no exception. It is manufactured to meet high standards, ensuring consistent performance and reliability for critical applications. The module is available in a compact, 32-pin (5mm x 5mm) TQFN package, which is RoHS compliant and suitable for automated assembly processes, facilitating ease of integration into a wide array of product designs.

With its integrated approach and robust feature set, the MAXM17635AMG+T from Analog Devices Inc. represents a comprehensive power management solution that can help streamline product development and enhance system reliability.
