Product Overview: MAX5702BAUB+ from Analog Devices Inc.

The MAX5702BAUB+ is a high-performance, precision digital-to-analog converter (DAC) from Analog Devices Inc., designed to meet the rigorous demands of complex industrial, communication, and high-end consumer applications. This versatile DAC offers a unique combination of features and capabilities that make it an ideal choice for systems where accuracy and stability are critical.

Key Features

• Resolution: The MAX5702BAUB+ boasts a 10-bit resolution, providing fine granularity and precise control over analog outputs.
• Interface: It features an SPI-compatible serial interface, enabling easy integration with a wide range of microcontrollers and digital systems.
• Channels: This DAC comes with dual channels, allowing for simultaneous output of two analog signals, which can be particularly useful in stereo audio applications or dual-signal control systems.
• Supply Voltage: It operates on a 2.7V to 5.5V supply voltage, ensuring compatibility with both 3.3V and 5V systems.

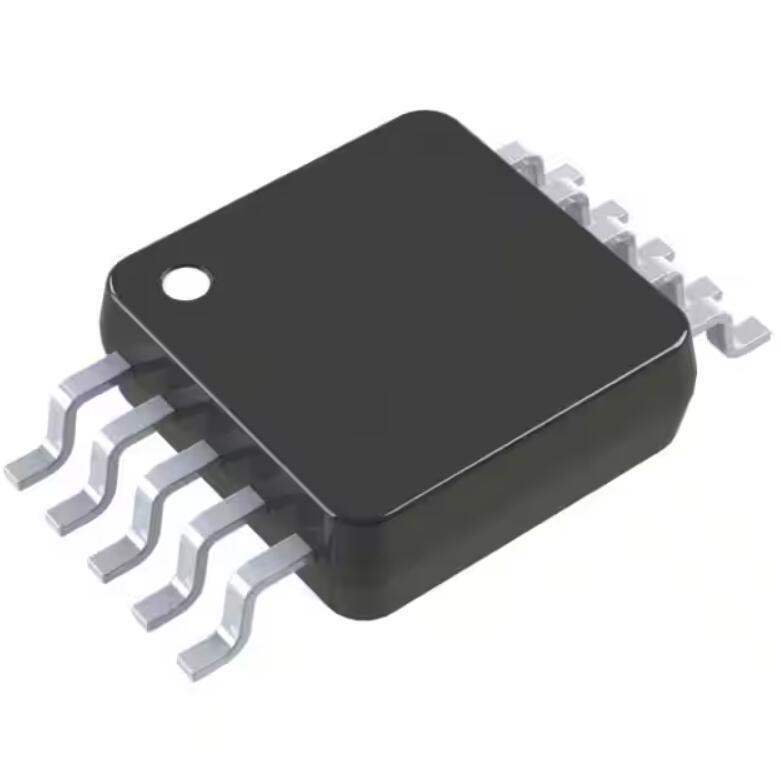

• Package: The device is offered in a compact, 10-pin µMAX package, making it suitable for space-constrained applications.
• Temperature Range: It is specified for the extended industrial temperature range (-40°C to +105°C), ensuring reliable performance in harsh environments.

Applications

The MAX5702BAUB+ is well-suited for a variety of applications, including:

• Automated test equipment
• Data acquisition systems
• Portable instrumentation
• Process control and automation
• Audio equipment

Advantages

With its high resolution and dual-channel output, the MAX5702BAUB+ provides precise control over analog signals, making it an excellent choice for fine-tuning and calibration processes. The SPI interface simplifies communication, while the extended temperature range guarantees operation in extreme conditions. The compact package allows for integration into systems where board space is at a premium.

Overall, the MAX5702BAUB+ from Analog Devices Inc. combines performance, versatility, and reliability, making it a top-tier option for designers and engineers looking to enhance their analog output capabilities.
