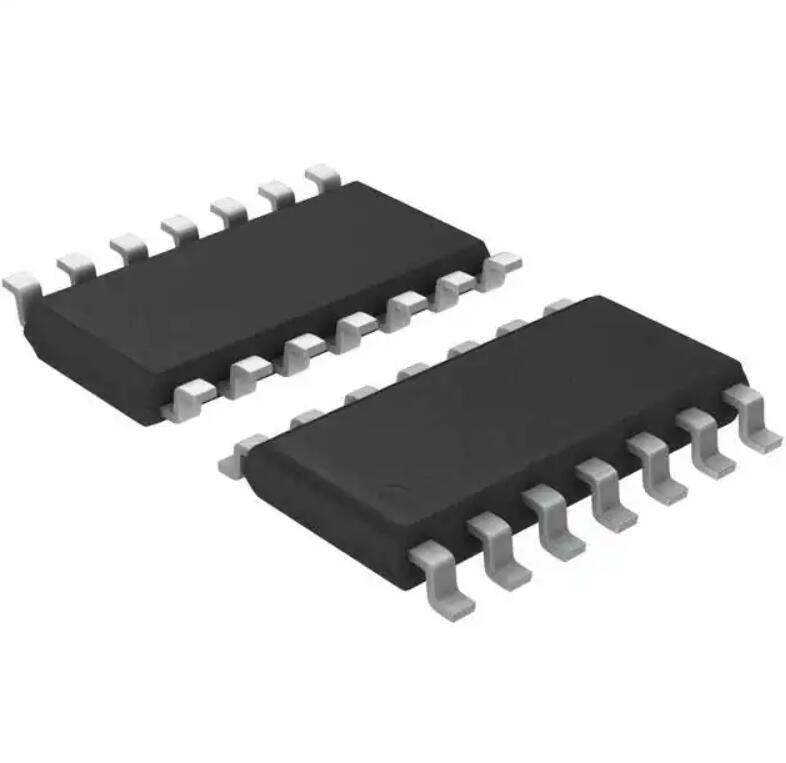

Product Overview: MAX3491AEASD+T

The MAX3491AEASD+T is a high-performance, low-power, RS-485/RS-422 transceiver module from Analog Devices Inc., designed to provide bidirectional data communications on multipoint bus transmission lines. It is a part of MAXIM Integrated's robust family of transceivers that are well-suited for long-distance and high-speed applications where noise immunity and reliable data transmission are critical.

Key Features

• Interface Type: RS-485 / RS-422
• Data Rate: Up to 10 Mbps
• Supply Voltage: 3.3V or 5V
• Driver Output Type: Differential
• Receiver Input Type: Differential
• Operating Temperature Range: -40°C to +85°C
• Package / Case: 8-SOIC (0.154", 3.90mm Width)
• Mounting Type: Surface Mount
• ESD Protection: ±15kV Human Body Model (HBM)

Applications

The MAX3491AEASD+T is ideal for various applications that require robust and reliable communication, including but not limited to:

• Industrial Control Systems
• Building Automation
• Networked Security Systems
• Data Acquisition Systems
• Factory Automation

Performance and Durability

This transceiver is designed to withstand harsh industrial environments. It features robust electrostatic discharge (ESD) protection and is built to handle the challenges of long cable runs and industrial interference. The high-speed operation of up to 10 Mbps makes it suitable for advanced applications that demand fast data transfer rates.

Energy Efficiency

With a focus on energy efficiency, the MAX3491AEASD+T operates with low quiescent current, which makes it an excellent choice for power-sensitive applications. Its low-power shutdown mode further conserves energy when the device is not actively transmitting or receiving data.

Easy Integration

The surface mount package of the MAX3491AEASD+T allows for easy integration into a wide range of electronic systems. Its compact 8-SOIC form factor is designed to take up minimal board space, which is beneficial for designs where space is at a premium.

Overall, the MAX3491AEASD+T transceiver from Analog Devices Inc. represents a reliable and efficient solution for high-speed data communication in demanding industrial and commercial environments.
