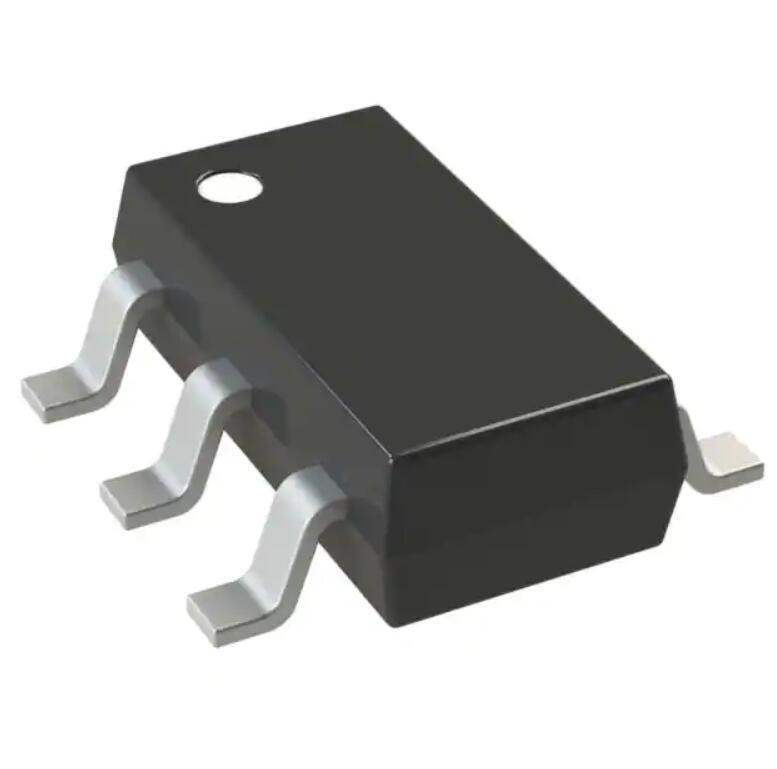

The LTC6992HS6-2#WTRMPBF is a part of the TimerBlox® family of versatile silicon timing devices from Analog Devices Inc. This particular component is a voltage-controlled pulse width modulator (PWM) that can be easily incorporated into a wide range of applications due to its simplicity and ease of use. The device is housed in a compact 6-lead SOT-23 package, offering a space-saving solution for modern electronic systems.

With a frequency range of 3.81Hz to 1MHz, the LTC6992 provides a highly adjustable PWM signal that is determined by an external resistor (RSET) and controlled by an analog voltage (VCTRL). The duty cycle can be varied from <1% to >99% which allows for precise control over the PWM output. This makes the LTC6992HS6-2#WTRMPBF an ideal choice for LED dimming, motor control, and variable frequency drives, among other applications.

The device is designed to be robust with a supply voltage range of 2.25V to 5.5V, providing stable operation across various power supplies and conditions. Its low power consumption makes it suitable for battery-operated devices, while the CMOS output driver ensures compatibility with a wide range of downstream digital circuits.

The LTC6992HS6-2#WTRMPBF also features a ‘divide by 2’ output configuration, which provides additional flexibility in generating an output PWM signal. This can be particularly useful in applications requiring a specific frequency range or PWM characteristics. Moreover, the part is specified over the commercial and industrial temperature ranges, guaranteeing reliable performance in diverse environmental conditions.

In summary, the LTC6992HS6-2#WTRMPBF from Analog Devices Inc. is a highly versatile, easy-to-use PWM generator that is suitable for a multitude of applications requiring precise control of the pulse width modulation. Its compact size, low power consumption, and flexible configuration options make it an excellent choice for designers looking to add reliable timing solutions to their projects.
