Product Overview: LTC6373HDFM#TRPBF

The LTC6373HDFM#TRPBF is a high-performance, precision instrumentation amplifier from Analog Devices Inc. This state-of-the-art component is designed to offer a perfect blend of accuracy, low noise, and low power consumption, making it an ideal choice for a wide range of applications, including medical devices, industrial measurement, and automatic test equipment.

Key Features

• High Precision: The LTC6373HDFM#TRPBF boasts excellent linearity with a maximum input offset voltage of just 35µV, ensuring high-precision measurements in critical applications.
• Low Noise: With a low noise density of 13nV/√Hz at 1kHz, this instrumentation amplifier helps maintain signal integrity, which is crucial for high-fidelity signal processing.
• Wide Gain Range: The device offers a wide and adjustable gain range, which can be configured via external resistors, providing flexibility and precision in amplification levels.
• Low Power Consumption: The LTC6373HDFM#TRPBF is designed for power-sensitive applications, with a low supply current of just 1.3mA per amplifier.
• CMRR and PSRR: High Common Mode Rejection Ratio (CMRR) and Power Supply Rejection Ratio (PSRR) minimize the effects of common-mode and power supply noise, enhancing measurement accuracy.

Applications

Due to its high precision and low noise characteristics, the LTC6373HDFM#TRPBF is suitable for a variety of applications, including:

• Medical instrumentation such as ECG and EEG monitors
• Industrial process controls and monitoring systems
• Precision data acquisition systems
• Automatic test equipment requiring high accuracy

Package and Quality

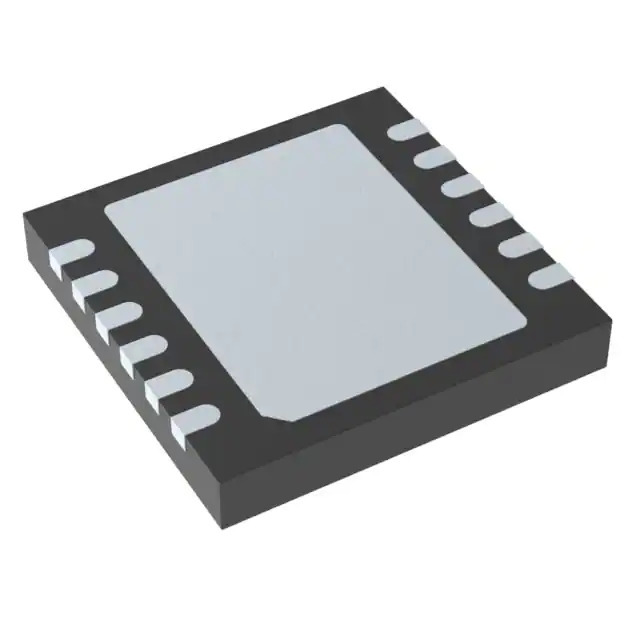

The LTC6373HDFM#TRPBF comes in a compact, surface-mountable LQFN package, which is designed to save space on printed circuit boards (PCBs). The device is also RoHS compliant and adheres to the stringent quality standards set by Analog Devices Inc., ensuring reliability and performance in demanding environments.

With its combination of precision, low noise, and low power, the LTC6373HDFM#TRPBF from Analog Devices Inc. stands out as an exemplary solution for designers seeking to enhance the performance of their high-end instrumentation and measurement systems.
