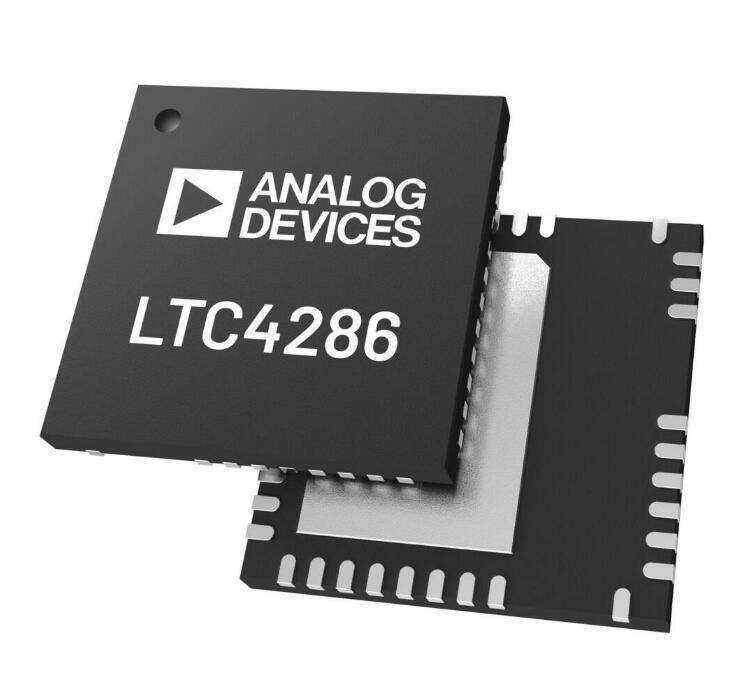

Product Overview: LTC4286AUK#TRPBF from Analog Devices Inc.

The LTC4286AUK#TRPBF is a high-performance, feature-rich Power over Ethernet (PoE) interface controller designed by Analog Devices Inc. This advanced component is engineered to facilitate the seamless delivery of power over Ethernet cabling to powered devices (PDs), such as VoIP phones, wireless access points, and network cameras. It is compliant with the IEEE 802.3at (PoE+) and the IEEE 802.3bt (4-pair PoE) standards, which ensures its compatibility with the latest PoE applications requiring up to 90W of power.

This controller integrates a robust set of features that make it a versatile solution for various PoE applications. It includes an integrated MOSFET and sense resistor, which simplifies the design and reduces external component count, enhancing system reliability. The LTC4286AUK#TRPBF also provides advanced power management capabilities, including programmable classification, inrush current control, and power good outputs. These features ensure that the device can manage the power requirements of connected PDs effectively while protecting the integrity of the network infrastructure.

The LTC4286AUK#TRPBF is designed with thermal overload protection that safeguards the device under excessive power conditions, ensuring a robust solution for critical network hardware. Additionally, it offers signature resistor disconnect detection, which enhances its security features by preventing power from being applied to non-compliant devices. This contributes to the overall safety and efficiency of the PoE system.

With its compact form factor, the LTC4286AUK#TRPBF is housed in a QFN package that is suitable for space-constrained applications. The device also features an extended temperature range, making it an ideal choice for industrial environments where temperatures can vary significantly.

Analog Devices Inc. is known for its commitment to quality and reliability, and the LTC4286AUK#TRPBF is no exception. It represents a sophisticated solution for designers seeking to integrate PoE capabilities into their products with confidence in performance and durability.
