The LTC2415-1IGN#PBF is a high-precision, micropower, 24-bit analog-to-digital converter (ADC) from Analog Devices Inc., designed for direct high impedance sensor interfaces. Its innovative design offers a unique combination of features that make it ideal for demanding data acquisition applications where low power and high accuracy are paramount.

Key Features:

• 24-Bit Resolution: This ADC provides a high degree of precision with a 24-bit output, ensuring detailed and accurate digital representations of analog signals.
• No Latency ΔΣ™ Converter: The LTC2415-1IGN#PBF features a no latency delta-sigma architecture, providing immediate conversion results without the delay typically associated with delta-sigma converters, making it suitable for multiplexed applications.
• Single Supply Operation: Operating from a single 2.7V to 5.5V supply, this device simplifies the power supply design and is suitable for battery-operated systems.
• Easy Drive Differential Inputs: The differential inputs easily interface with a variety of sensor types and are designed to be driven directly without buffering, reducing system complexity and cost.
• Internal Oscillator: With an integrated oscillator, there is no need for external components to set the sampling rate, minimizing the external part count.
• Low Power Consumption: The LTC2415-1IGN#PBF is optimized for power-sensitive applications, featuring a low current draw in both active and shutdown modes.

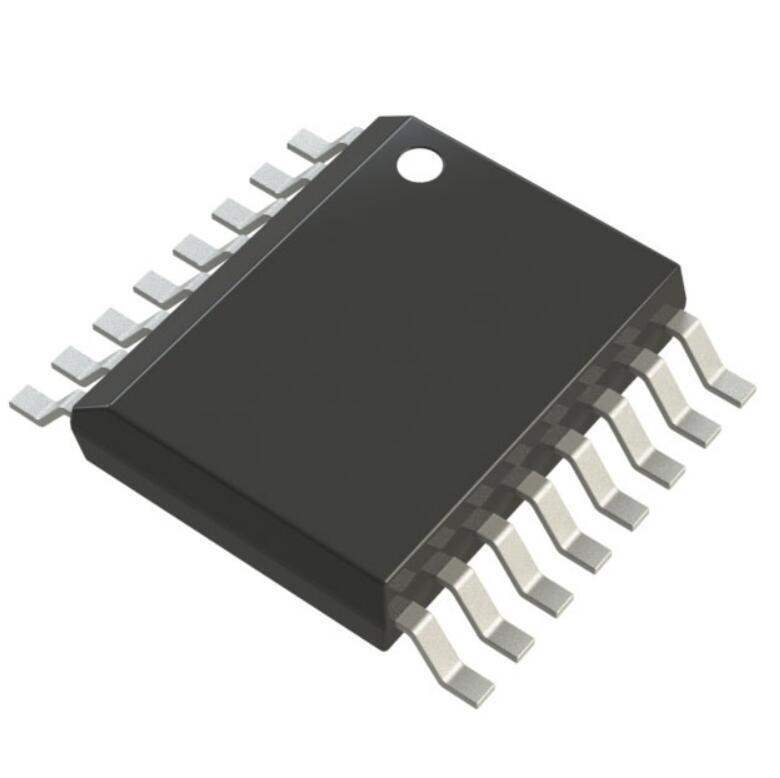

• Small Package: Available in a 16-lead SSOP package, it requires minimal board space, which is beneficial for compact designs.

Applications:

With its precision and low power features, the LTC2415-1IGN#PBF is well-suited for a wide range of applications, including:

• Portable Instrumentation
• Temperature Measurements
• Industrial Process Control
• Medical Devices
• Weight and Pressure Measurement
• Battery-Operated Systems

Overall, the LTC2415-1IGN#PBF from Analog Devices Inc. offers an excellent balance of precision, power efficiency, and ease of use for designers looking to integrate a robust ADC solution into their systems.
