Product Overview: LTC2226IUH#TRPBF from Analog Devices Inc.

The LTC2226IUH#TRPBF is a high-performance, 12-bit, 40Msps analog-to-digital converter (ADC) from Analog Devices Inc., designed to provide exceptional accuracy and speed for a wide range of applications. This ADC features a versatile sampling rate that makes it suitable for communication systems, medical imaging, and industrial data acquisition systems, where precise signal processing is critical.

Key Features

• High Resolution: With a 12-bit resolution, the LTC2226IUH#TRPBF offers fine granularity in signal conversion, enabling it to capture small signal variations with high fidelity.
• Fast Sampling Rate: The device's 40Msps (mega samples per second) sampling rate ensures that high-frequency signals are accurately digitized, reducing the risk of aliasing and providing excellent temporal resolution.
• Low Noise Performance: Designed with a focus on low noise, the LTC2226IUH#TRPBF maintains signal integrity, which is crucial for applications such as radar systems and spectrum analyzers.
• Power Efficiency: This ADC is optimized for low power consumption, making it an ideal choice for portable and battery-powered devices where energy efficiency is a necessity.
• Differential Inputs: The differential input structure provides improved common-mode noise rejection and enhances the dynamic range, which is particularly beneficial in environments with high electromagnetic interference (EMI).

Package and Availability

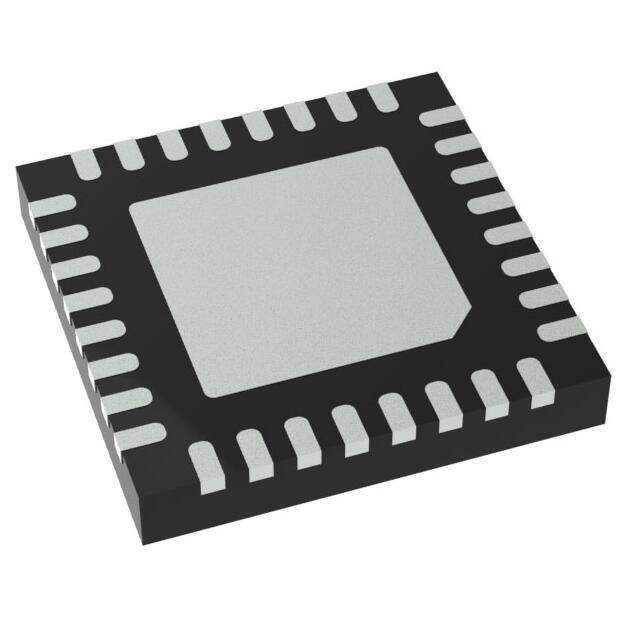

The LTC2226IUH#TRPBF is housed in a compact QFN (quad-flat no-leads) package, which is designed for space-constrained applications. The package is RoHS compliant, ensuring adherence to the latest environmental standards and regulations. Additionally, the part number includes a 'TRPBF' suffix, indicating that the product is provided in tape and reel packaging, facilitating efficient assembly for high-volume production.

Applications

Due to its robust feature set, the LTC2226IUH#TRPBF is an excellent choice for a variety of demanding applications. These include:

• Wireless and Wired Broadband Communication
• Medical Imaging Systems
• Professional Video Cameras
• Test and Measurement Equipment
• High-Speed Data Acquisition Systems

With its blend of speed, precision, and power efficiency, the LTC2226IUH#TRPBF from Analog Devices Inc. is a versatile component that meets the stringent requirements of modern electronic systems.
