Analog Devices Inc. LTC2123IUK#TRPBF High-Speed ADC

The LTC2123IUK#TRPBF is a cutting-edge, high-performance dual 14-bit Analog-to-Digital Converter (ADC) from Analog Devices Inc., designed to cater to the rigorous demands of high-speed signal processing applications. This ADC is capable of sampling rates up to 250Msps, making it an ideal solution for a wide range of applications, including wireless communication, radar systems, medical imaging, and test equipment.

With its advanced design, the LTC2123IUK#TRPBF offers excellent dynamic performance, featuring a 73.1dB Signal-to-Noise Ratio (SNR) and 88dB Spurious-Free Dynamic Range (SFDR) at baseband. These specifications ensure the preservation of signal integrity and the capture of fast-changing signals with high fidelity, which is crucial for high-end industrial and communication systems.

The device operates within an industrial temperature range of -40°C to +85°C, making it suitable for deployment in harsh environments. Its robust design is complemented by a differential input range of ±1V, which provides designers with the flexibility to interface with a variety of signal sources directly.

One of the key features of the LTC2123IUK#TRPBF is its digital output randomizer, which reduces the likelihood of unwanted tones due to digital feedback. Additionally, the ADC includes a digital down-converter with a programmable numerically controlled oscillator, enabling it to process IF signals efficiently.

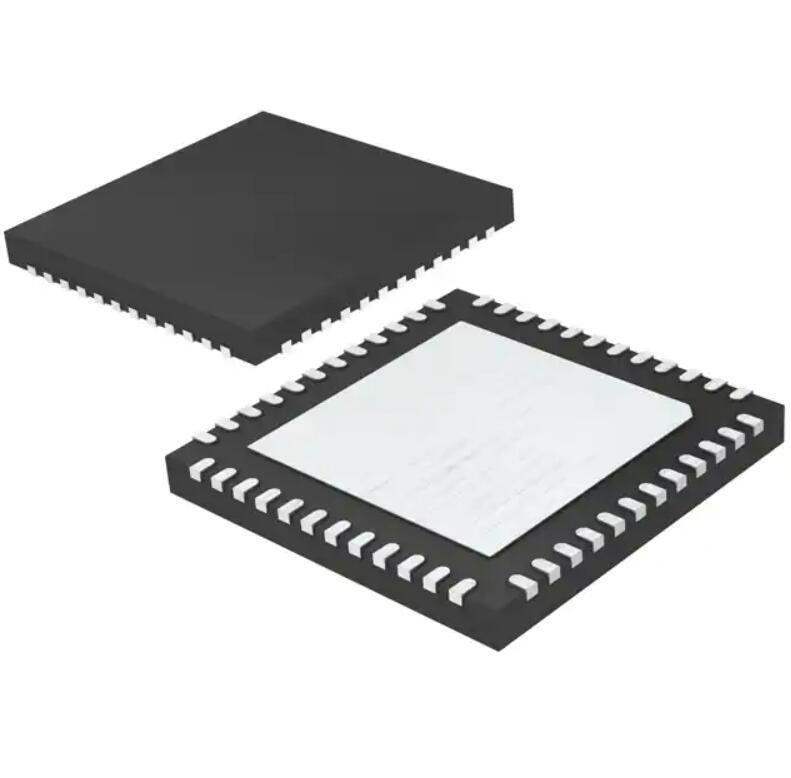

The LTC2123IUK#TRPBF comes in a compact 7mm x 8mm QFN package, which is highly conducive for space-constrained applications. Its small footprint, combined with a power consumption of only 1.25W, makes it an energy-efficient choice for portable and battery-powered devices.

Furthermore, the ADC supports JESD204B serial interface, which simplifies the board design by reducing the number of data I/O lines required and enables a high throughput with fewer pins. This feature is particularly beneficial for systems with high channel counts, as it allows for scalable and synchronized multi-channel data acquisition.

Overall, the LTC2123IUK#TRPBF from Analog Devices Inc. represents a sophisticated blend of speed, precision, and reliability, providing engineers with a versatile ADC that can tackle the most demanding signal processing challenges.
