Analog Devices Inc. LT4356HDE-3#PBF Surge Stopper

The LT4356HDE-3#PBF from Analog Devices Inc. is a robust surge stopper designed to protect sensitive electronic circuits from high voltage spikes and surges, ensuring the stability and reliability of various applications. This device is a critical component for systems that require stringent protection from overvoltage transients, such as those caused by load dump in vehicles, lightning strikes, or power supply overvoltage.

The LT4356HDE-3#PBF operates by controlling the gate voltage of an external N-channel MOSFET to act as a variable resistor during the onset of a surge, thus limiting the output voltage to a safe level. Once the surge has passed, the device ensures that the MOSFET returns to its low on-resistance state, allowing normal operation. This method of surge protection is highly effective and minimizes power loss compared to traditional clamping methods.

One of the key features of the LT4356HDE-3#PBF is its wide input voltage range, which allows it to accommodate various applications with different voltage requirements. Additionally, its adjustable output clamp voltage provides flexibility, enabling users to set the desired protection level according to the needs of their specific circuitry.

This surge stopper also includes an overcurrent protection feature, which is essential for preventing damage due to excessive current flow. This is achieved through current limiting, which reduces the risk of thermal damage to both the surge stopper and the protected components. Furthermore, the device has a fault indicator that provides a signal in the event of an overcurrent condition, allowing for easy diagnosis and maintenance.

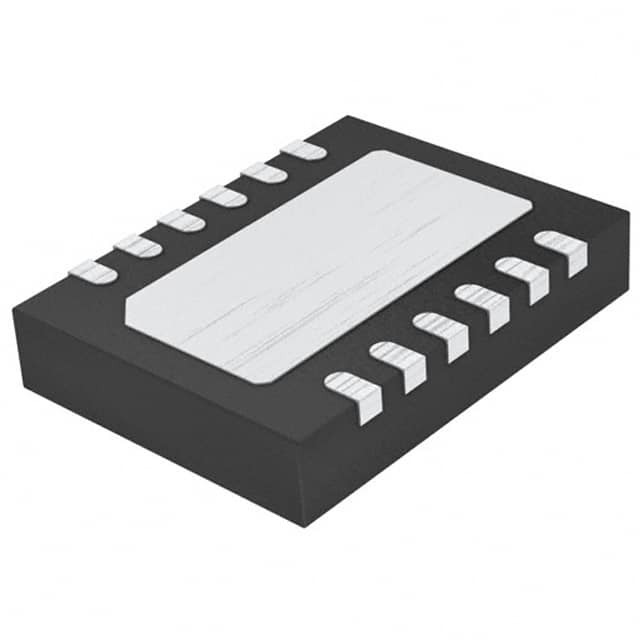

The LT4356HDE-3#PBF comes in a compact, thermally efficient 12-lead 4mm × 3mm DFN package, making it suitable for space-constrained applications. Its robust design ensures reliable operation in harsh environments, which is paramount for industrial, automotive, and telecommunication systems that face challenging operating conditions.

In summary, the LT4356HDE-3#PBF surge stopper from Analog Devices Inc. is a high-performance solution for protecting sensitive electronics from voltage transients. Its combination of surge protection, overcurrent protection, and fault indication, all housed in a small package, makes it a versatile and indispensable component for any high-reliability electronic system.
