Product Overview: LT3756EUD-1#TRPBF from Analog Devices Inc.

The LT3756EUD-1#TRPBF is a high-performance LED driver integrated circuit (IC) designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This advanced driver IC is specifically engineered to provide robust and efficient solutions for driving high-brightness LEDs in a variety of applications, including automotive lighting, industrial illumination, and general-purpose LED backlighting.

Key Features

• Wide Input Voltage Range: The LT3756EUD-1#TRPBF operates over a broad input voltage range from 6V to 100V, making it versatile for use in a wide array of power systems.
• High Output Voltage Capability: It can provide an output voltage of up to 100V, which is suitable for several series-connected LEDs, ensuring consistent lighting without the need for multiple drivers.
• Adjustable Frequency: The switching frequency is adjustable from 100kHz to 1MHz, allowing designers to optimize the driver for efficiency or to minimize external component size.
• Integrated Fault Protection: The device features open LED protection, LED short-circuit protection, and overtemperature protection, enhancing the reliability and safety of the lighting system.
• External Dimming Capability: It supports both analog and PWM dimming methods, providing flexibility in controlling the brightness of the LED array.
• Thermal Shutdown: An internal thermal shutdown function protects the IC from overheating, further ensuring the longevity of the product.

Applications

• Automotive and Avionic Lighting
• Architectural Detail Lighting
• Display Backlighting
• General Purpose LED Illumination

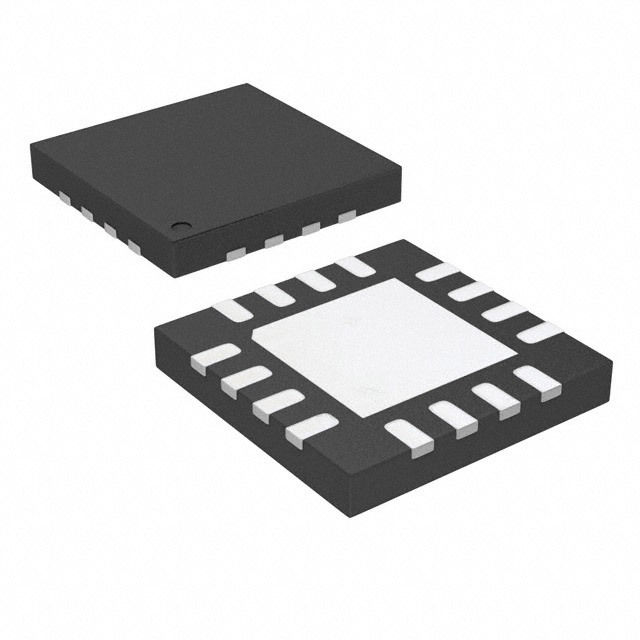

The LT3756EUD-1#TRPBF is packaged in a compact 16-lead QFN package with a thermal pad for enhanced thermal performance. Its small footprint and high level of integration make it an excellent choice for space-constrained applications. Designed for ease of use, it includes features such as programmable soft-start to limit inrush current and an internal boost diode, which simplifies the design and reduces external component count.

With its robust design and comprehensive feature set, the LT3756EUD-1#TRPBF from Analog Devices Inc. is an ideal solution for driving LEDs with precision and efficiency. Whether for high-power industrial lighting or intricate display backlighting, this LED driver IC offers a high degree of performance and reliability to meet the needs of advanced lighting systems.
