The LT3744EUHE#TRPBF is a high-performance DC/DC converter designed and manufactured by Analog Devices Inc., a leader in the field of precision high-performance integrated circuits. This component is specifically engineered to meet the stringent requirements of LED driving applications and is also suitable for a wide range of other power conversion tasks.

Key Features

• Wide Input Voltage Range: The LT3744 can handle input voltages from 6V to 36V, making it versatile for various power supply scenarios.
• High Output Current: It is capable of delivering up to 20A of continuous output current, providing ample power for high-intensity LED arrays and other demanding loads.
• Integrated 60V Switch: An onboard 60V, 1Ω N-channel MOSFET switch enhances efficiency and reduces external component count.
• Adjustable Frequency: Users can set the switching frequency anywhere from 100kHz to 1MHz, allowing optimization for efficiency or component size.
• PWM Dimming Capability: The device supports PWM dimming, offering precise control over LED brightness and power management.

Applications

The LT3744EUHE#TRPBF is suitable for a variety of applications, including:

• Automotive and Industrial LED Lighting
• General Purpose Constant-Current Source
• Battery-Powered Systems
• Low Voltage Power Supplies

Package and Reliability

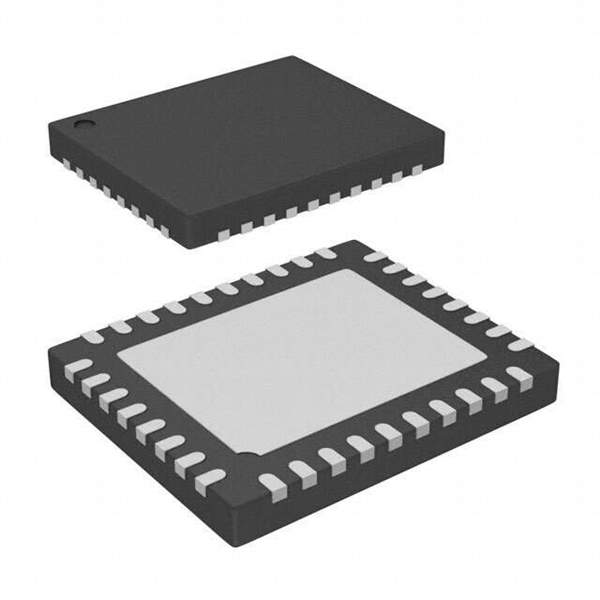

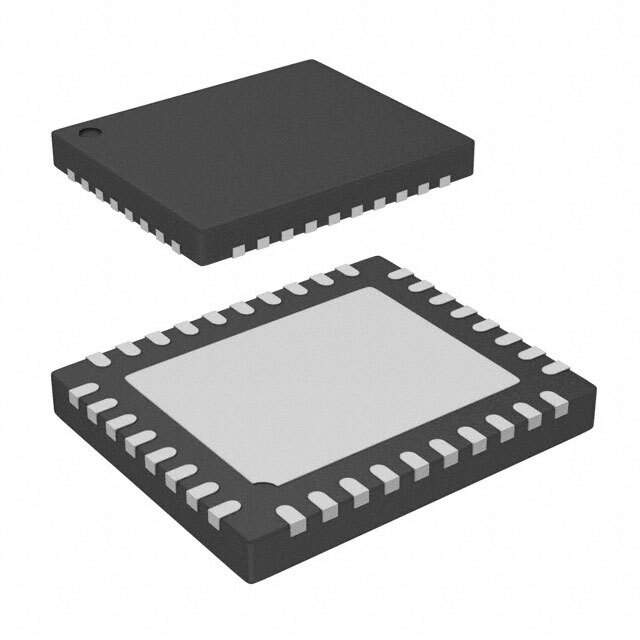

This device comes in a 36-lead QFN package that is RoHS compliant and designed for improved thermal performance. The LT3744EUHE#TRPBF is also part of Analog Devices' high-reliability product lineup, ensuring long-term performance and stability in a variety of environmental conditions.

Environmental and Quality Standards

Adhering to industry standards for quality and environmental impact, the LT3744EUHE#TRPBF meets or exceeds the requirements of international directives such as RoHS. Analog Devices Inc. is committed to providing environmentally friendly products that maintain high levels of performance and reliability.
