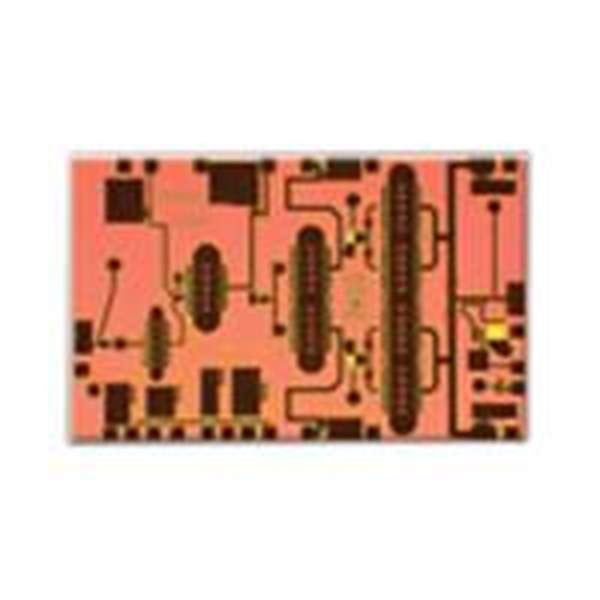

The HMC949 from Analog Devices Inc. is a state-of-the-art voltage variable attenuator (VVA) designed to offer precision amplitude control across a wide range of RF and microwave frequencies. This high-performance component is ideal for applications that require accurate signal leveling, such as in automatic level control (ALC) circuits, power amplifiers, and receiver gain control modules.

Key Features

• Frequency Range: The HMC949 operates effectively over a broad frequency range, making it versatile for various applications in the RF and microwave domains.
• High Attenuation Range: It offers a substantial attenuation range, allowing for precise control over signal levels.
• Excellent Linearity: The device maintains excellent linearity throughout its operating range, ensuring minimal distortion in signal integrity.
• Low Insertion Loss: With its low insertion loss, the HMC949 ensures that signal power is conserved as much as possible when passing through the attenuator.
• Single Positive Control Voltage: A single positive control voltage simplifies the integration of the VVA into various circuit designs.
• Compact Package: The component comes in a compact package, suitable for space-constrained applications while still delivering high performance.

Applications

• Test Equipment
• Telecommunications
• Base Stations
• Wireless Infrastructure
• Satellite Communications

The HMC949 from Analog Devices Inc. is a testament to the company's commitment to delivering high-quality components that enhance the performance and reliability of RF and microwave systems. Its robust design and versatile features make it an excellent choice for engineers looking to optimize their signal chain for better control and performance.

Ordering Information

For purchasing information or to learn more about the HMC949 Voltage Variable Attenuator, please visit the Analog Devices Inc. website or contact their sales and support team.
