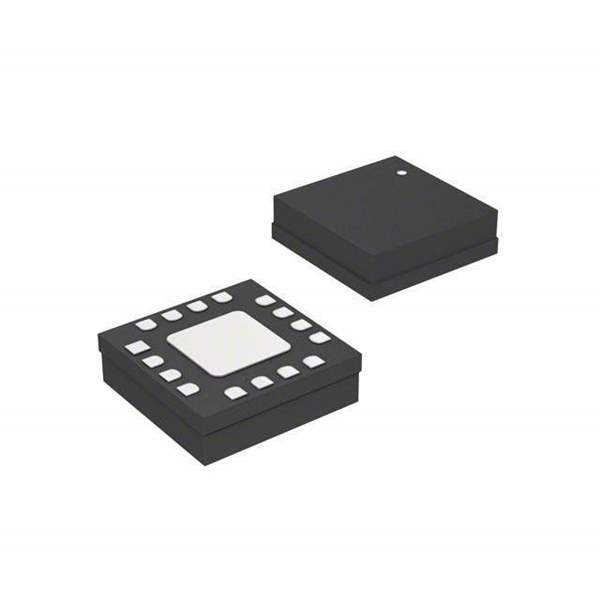

Product Overview: HMC794LP3E

The HMC794LP3E is a high-performance, wideband Fractional-N Phase-Locked Loop (PLL) with an Integrated Voltage Controlled Oscillator (VCO) from Analog Devices Inc. This advanced RF synthesizer is designed to meet the demanding requirements of wireless infrastructure, test and measurement equipment, and broadband communication systems. With its fractional-N divider, the HMC794LP3E allows for fine frequency resolution and low phase noise, making it an ideal choice for applications requiring precise signal generation.

Key Features and Benefits

• Wide Frequency Range: The VCO operates over a broad frequency range, providing users with a versatile solution for generating various frequencies.
• Low Phase Noise: Engineered for high spectral purity, the device exhibits low phase noise performance, which is critical for high-performance communication systems.
• High Resolution: The fractional-N PLL enables fine frequency resolution, allowing for accurate frequency synthesis and channel selection.
• Integrated VCO: The inclusion of an integrated VCO simplifies the design process by reducing the number of external components required.
• Programmable: The HMC794LP3E features programmable dividers and charge pump currents, providing designers with flexibility to tailor the device to specific application needs.
• Compact Packaging: Housed in a compact 3x3 mm QFN package, the HMC794LP3E saves valuable board space and is suitable for space-constrained applications.

Applications

• Wireless Infrastructure (Base Stations, Repeaters)
• Test and Measurement Equipment
• Broadband Communication Systems
• Microwave Point-to-Point Systems
• Satellite Communications

The HMC794LP3E from Analog Devices Inc. represents a blend of performance, flexibility, and compactness, making it a top choice for engineers seeking a reliable PLL with an integrated VCO for their high-frequency applications. With its robust feature set, this product not only ensures precise frequency control but also contributes to the overall efficiency and effectiveness of the systems it is employed in.
