The HMC713LP3ETR is a state-of-the-art GaAs pHEMT MMIC Low Noise Amplifier (LNA) designed by Analog Devices Inc., a renowned leader in the semiconductor industry. This high-performance LNA operates within the frequency range of 2 GHz to 20 GHz, making it an ideal choice for a wide array of applications, including but not limited to, point-to-point radios, military & space, fiber optics, and test instrumentation.

Key Features

• Frequency Range: The HMC713LP3ETR operates over a broad frequency range from 2 GHz to 20 GHz, providing versatility for various high-frequency applications.
• Gain: It offers a high gain of 12 dB, which is beneficial in applications that require signal amplification for better performance and signal integrity.
• Noise Figure: The device boasts an excellent noise figure of 2.5 dB, ensuring minimal added noise and thus preserving the quality of the received signal.
• Output Power: With an output power of 18 dBm at 1 dB compression point, the LNA can drive subsequent stages in the signal chain without significant distortion.
• Supply Voltage: It operates on a supply voltage of +3.3V, aligning with common system power rails and simplifying power management.

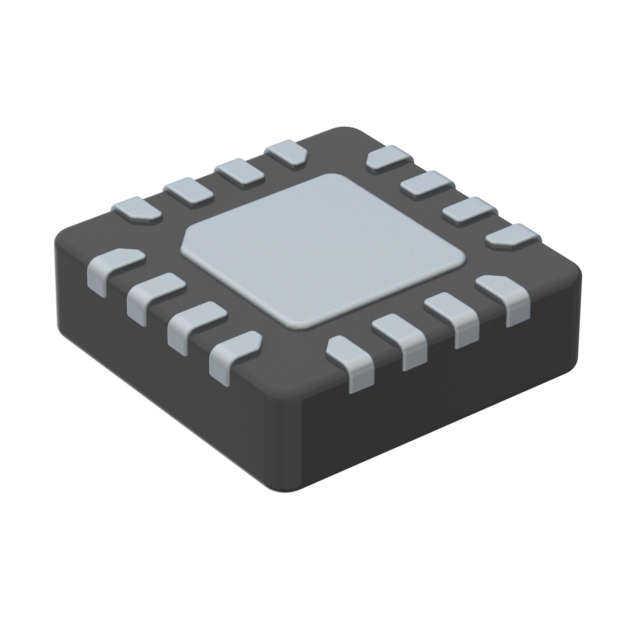

• Package: The HMC713LP3ETR comes in a RoHS compliant 3x3 mm QFN package, which is compact and suitable for space-constrained applications.

Applications

• Point-to-Point and Point-to-Multipoint Radios
• Military & Space
• Fiber Optics
• Test Instrumentation
• Satellite Communications

Analog Devices Inc. has equipped the HMC713LP3ETR with robust features that make it a highly reliable and efficient component for RF and microwave signal amplification. Its broad frequency range, coupled with a compact form factor, ensures that it can be integrated into various high-performance systems with stringent space and power requirements. The HMC713LP3ETR is a testament to Analog Devices Inc.'s commitment to providing innovative solutions that push the boundaries of communication technology.
