Analog Devices Inc. HMC675LP3ETR Mixer

The HMC675LP3ETR from Analog Devices Inc. is a high-performance, passive, double-balanced mixer that offers excellent isolation and low conversion loss. This mixer is a part of the Hittite Microwave product line from Analog Devices, which is renowned for its high-quality RF and microwave components. The HMC675LP3ETR is designed to meet the demanding requirements of wireless infrastructure, test and measurement equipment, and military applications.

This device operates over a wide frequency range, making it versatile for various applications. The RF and LO frequency range is from 6 GHz to 10 GHz, while the intermediate frequency (IF) range is from DC to 3 GHz. This broad frequency range allows for its use in a multitude of high-frequency signal processing tasks.

The HMC675LP3ETR boasts impressive performance characteristics. Its conversion loss is typically 9 dB, which ensures efficient signal conversion with minimal loss. Furthermore, the mixer provides excellent LO to RF isolation of 25 dB and LO to IF isolation of 35 dB, minimizing signal leakage and preserving signal integrity. The input IP3 is a remarkable 25 dBm, indicating its ability to handle high input power levels without significant distortion.

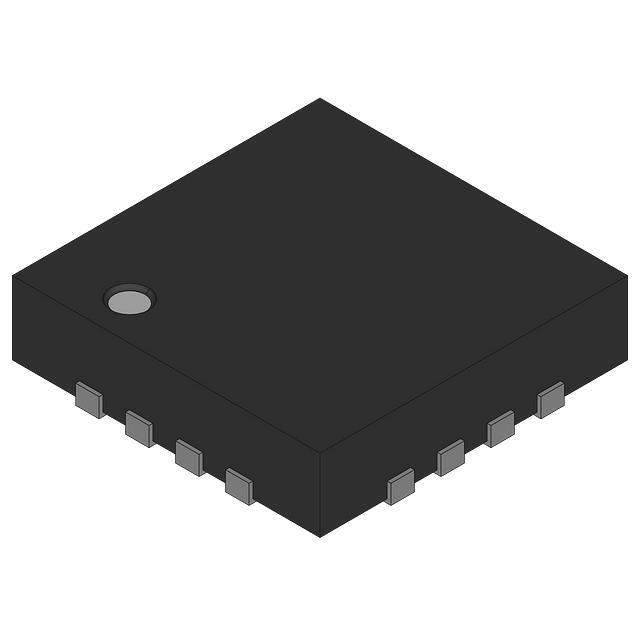

The device comes in a compact 3x3 mm QFN package, which is suitable for space-constrained applications. It is also designed for surface mount technology (SMT), which simplifies the assembly process and allows for efficient manufacturing. The HMC675LP3ETR is available in tape and reel packaging, making it ideal for high-volume production environments.

In conclusion, the HMC675LP3ETR from Analog Devices Inc. is a robust and reliable mixer component that offers a blend of performance, efficiency, and versatility. Its wide frequency range, low conversion loss, and high isolation levels make it an excellent choice for designers looking to enhance their RF and microwave systems.
