The HMC624LP4E from Analog Devices Inc. is a state-of-the-art Digital Attenuator, designed to offer precise attenuation over a broad frequency range. This high-performance component is an ideal solution for applications that require accurate control of signal levels in a variety of RF and microwave systems.

Key Features:

• Frequency Range: The HMC624LP4E operates effectively across a wide frequency range of 0.5 GHz to 6 GHz, making it suitable for a diverse array of RF applications including cellular infrastructure, broadband wireless services, Fixed Wireless Access (FWA), and satellite communications.
• Attenuation Range: It offers a wide attenuation range from 0 to 31.5 dB, with 0.5 dB steps, allowing for fine-tuning of signal levels to achieve optimal system performance.
• High Accuracy: The digital control interface provides 6-bit parallel control, ensuring high accuracy and repeatability of the attenuation settings.
• Low Insertion Loss: With its low insertion loss, this digital attenuator minimizes the impact on the overall signal chain, preserving signal integrity while adjusting attenuation levels.
• Single Positive Supply: The device operates on a single positive supply voltage, simplifying power supply design and integration into existing systems.

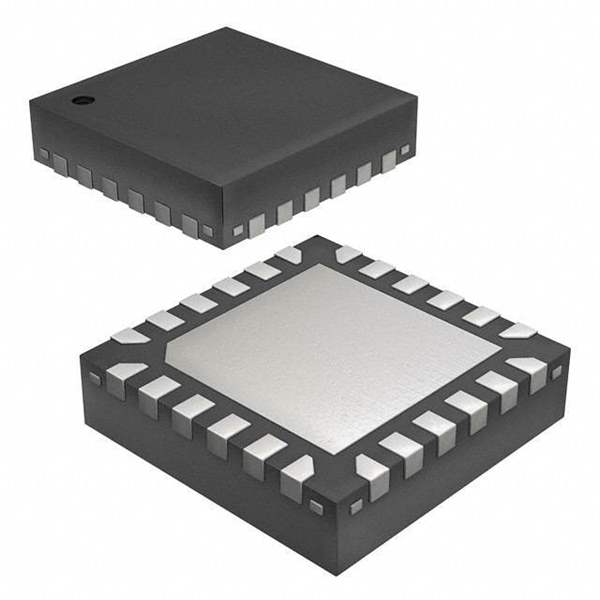

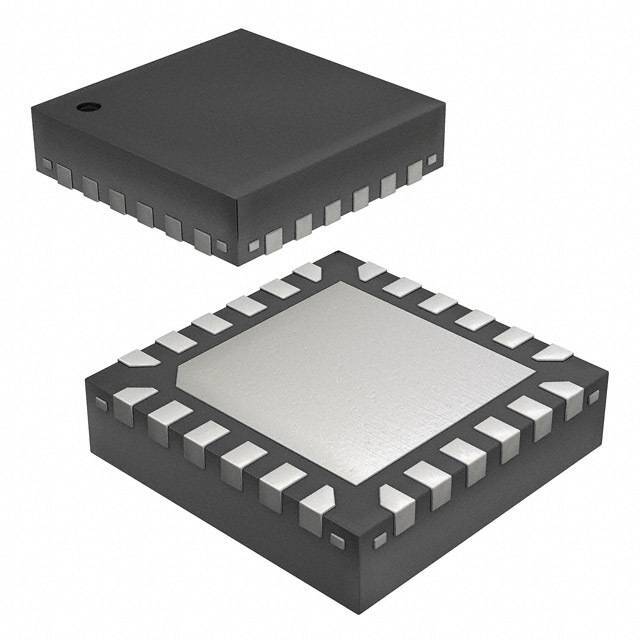

• Compact Package: Housed in a compact 4x4 mm QFN package, the HMC624LP4E is designed for space-constrained applications, without compromising on performance.

Applications:

The versatility of the HMC624LP4E makes it an excellent choice for a variety of applications, including:

• Automated Test Equipment (ATE)
• Telecommunications and Data Communications
• Military Radar and Radios
• Wireless Infrastructure
• RF and IF Signal Chains

Overall, the HMC624LP4E from Analog Devices Inc. represents a blend of performance, reliability, and flexibility, making it a top contender for designers looking to incorporate digital attenuation into their RF and microwave systems.
