The HMC441LH5 from Analog Devices Inc. is a high-performance, gallium arsenide (GaAs) pseudomorphic high electron mobility transistor (pHEMT) monolithic microwave integrated circuit (MMIC) power amplifier that operates within the 6 to 20 GHz frequency range. Designed to cater to a wide variety of RF and microwave applications, this amplifier is an ideal choice for those seeking a combination of high gain, wide bandwidth, and high output power.

Key Features

• Frequency Range: The HMC441LH5 is engineered to provide consistent performance across a broad frequency range from 6 GHz to 20 GHz, making it versatile for diverse applications.
• High Gain: It offers a high gain of typically 22 dB, which allows for robust signal amplification in various circuit designs.
• Output Power: The device delivers a high output power (P1dB) of 29 dBm, ensuring strong signal transmission capabilities.
• Supply Voltage: The amplifier operates on a supply voltage (Vdd) of +5V, integrating seamlessly into a wide range of system power architectures.
• Efficiency: With its pHEMT design, the HMC441LH5 is optimized for efficient performance, which is critical for minimizing system power consumption and heat generation.

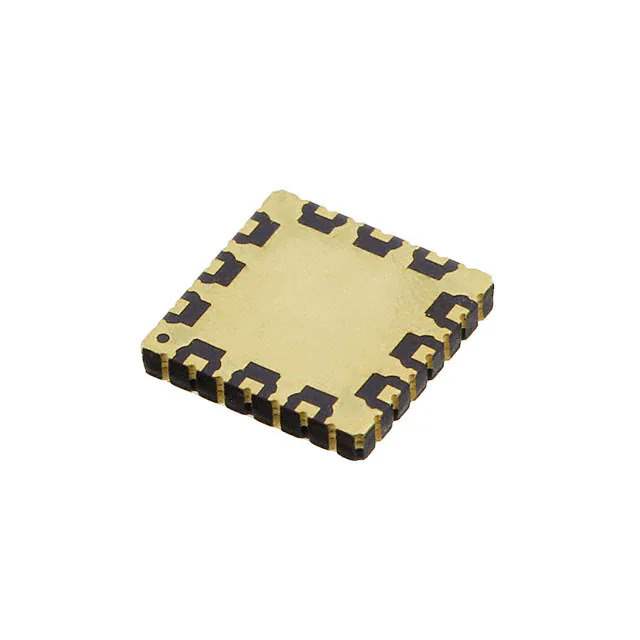

• Package: Housed in a compact 5x5 mm leadless QFN package, the HMC441LH5 is suitable for space-constrained applications while providing excellent thermal performance.

Applications

The versatile nature of the HMC441LH5 makes it suitable for a wide range of applications, including:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Telecommunication and satellite communication systems
• Military radar and electronic warfare systems
• Other general-purpose RF and microwave applications

Conclusion

The HMC441LH5 from Analog Devices Inc. stands out as a robust and reliable power amplifier for RF and microwave systems. Its combination of wide frequency range, high gain, and high output power, all packaged in a compact form factor, make it an excellent choice for engineers and designers looking to enhance their communication and signal processing applications.
