Analog Devices Inc. HMC441LC3B RF Amplifier

The HMC441LC3B from Analog Devices Inc. is a high-performance RF (Radio Frequency) amplifier designed for a wide range of applications, including telecommunications, military, and space systems. This compact and efficient amplifier operates within the frequency range of 6 GHz to 20 GHz, making it a versatile component for various high-frequency systems.

Built with GaAs PHEMT technology, the HMC441LC3B delivers exceptional gain, power, and efficiency. It boasts a gain of 15 dB with a +29 dBm output IP3 and a P1dB output power of +19 dBm, ensuring strong signal amplification with minimal distortion. The amplifier's low noise figure of 3 dB improves overall system sensitivity and performance.

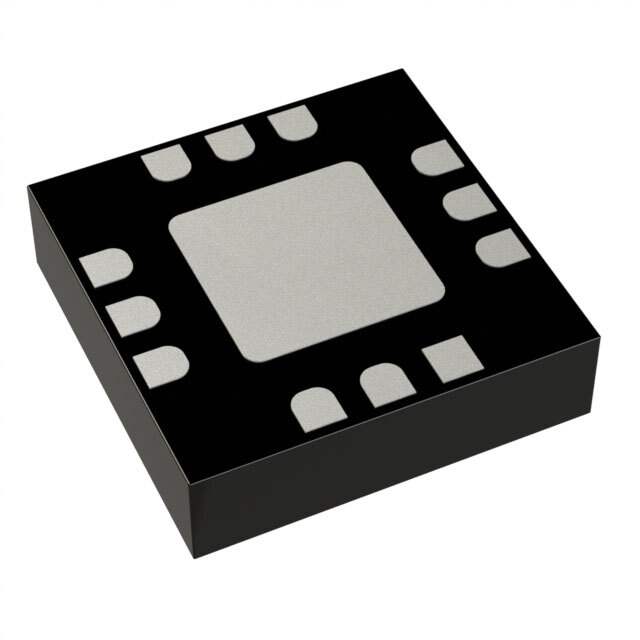

The HMC441LC3B is housed in a compact 3x3 mm ceramic leadless chip carrier package, which not only saves valuable board space but also provides excellent RF and thermal performance. This makes it an ideal choice for space-constrained applications where performance cannot be compromised.

Key features of the HMC441LC3B include:

• Frequency Range: 6 GHz to 20 GHz
• Gain: 15 dB
• Output IP3: +29 dBm
• P1dB Output Power: +19 dBm
• Supply Voltage: +5V
• Current Consumption: 190 mA
• Noise Figure: 3 dB
• Package: 3x3 mm ceramic leadless chip carrier

The device is also characterized by its robustness and reliability. It can operate over a wide temperature range, making it suitable for demanding environments. The HMC441LC3B is an excellent choice for designers looking for an amplifier that offers high dynamic range, low noise, and a compact form factor.

Whether you're working on point-to-point radios, VSAT, military & space hardware, or test instrumentation, the HMC441LC3B from Analog Devices Inc. provides the performance and reliability required to meet the stringent demands of high-frequency RF applications.
