Analog Devices HMC392LH5TR RF Amplifier

The HMC392LH5TR from Analog Devices Inc. is a high-performance RF (Radio Frequency) amplifier that operates within the frequency range of 3.5 GHz to 7.0 GHz. This RF amplifier is part of Analog Devices' Hittite Microwave product line, renowned for delivering exceptional performance and reliability in demanding RF applications. The HMC392LH5TR is designed to offer exceptional gain and dynamic range, which makes it an excellent choice for a variety of applications, including point-to-point radios, VSAT, military & space, and test instrumentation.

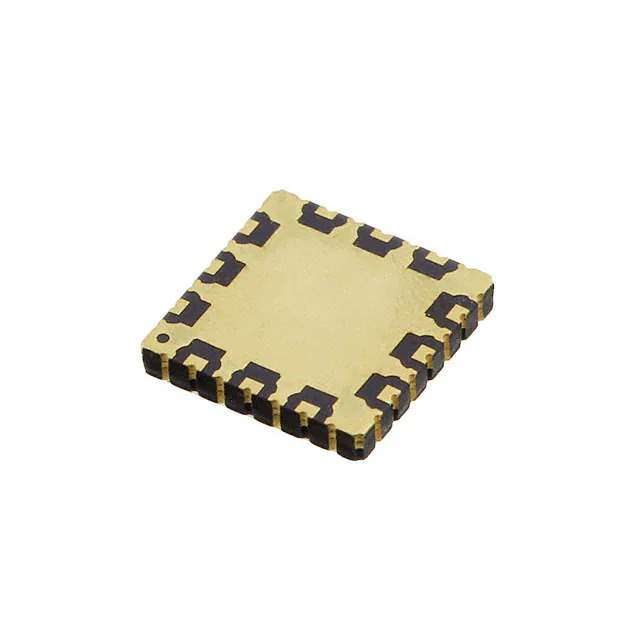

Encased in a compact 5x5 mm QFN package, the HMC392LH5TR is not only space-efficient but also boasts a robust design that ensures stable operation under varying conditions. It provides a high gain of 17 dB with a 22 dB input return loss and a 25 dB output return loss. This level of performance is achieved while maintaining a noise figure of just 2 dB, making it an ideal low-noise amplifier for receiver applications where signal integrity is crucial.

Furthermore, the HMC392LH5TR is designed to operate over a wide temperature range, ensuring consistent performance even in extreme environments. This temperature range, coupled with the device's balanced architecture, results in excellent third-order intercept (IP3) performance, which is critical for maintaining signal clarity and preventing distortion in complex RF systems.

Power efficiency is another key feature of the HMC392LH5TR. It operates on a single 5V supply and consumes a moderate amount of current, which is a significant advantage for battery-powered or energy-sensitive systems. Additionally, the amplifier is RoHS compliant, aligning with environmental regulations and ensuring its suitability for use in a wide range of markets around the globe.

Overall, the HMC392LH5TR from Analog Devices Inc. is a versatile and high-quality RF amplifier that offers a combination of performance, efficiency, and reliability. It is a suitable choice for engineers and designers looking to enhance their RF systems with a dependable and powerful amplification solution.
