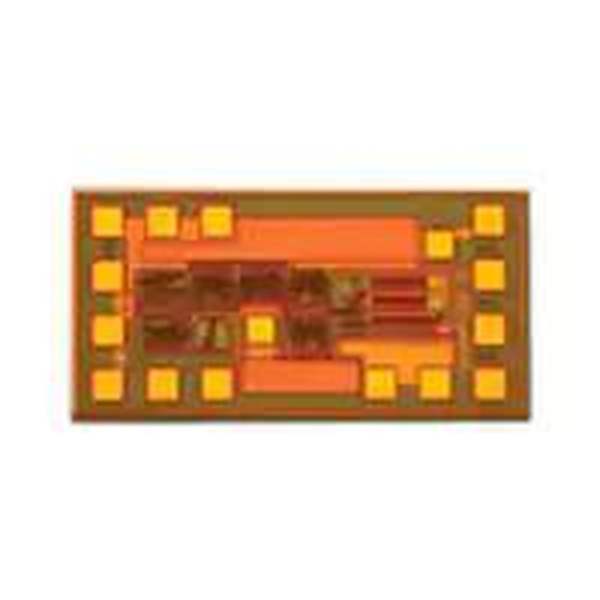

The HMC362 is a high-performance, silicon-based Double-Balanced Mixer, designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This mixer is part of the Hittite Microwave product family and is well-suited for RF and microwave applications that demand exceptional linearity, wide dynamic range, and low conversion loss.

Key Features

• Frequency Range: The HMC362 operates across a wide frequency range, from DC to 10 GHz in the RF and LO ports, with an IF range from DC to 3 GHz, making it highly versatile for various applications.
• Conversion Loss: It boasts a low conversion loss, typically 7 dB, which helps in maintaining signal integrity through the mixing process.
• LO/RF Isolation: The device offers excellent LO to RF isolation of 40 dB, ensuring minimal leakage between the Local Oscillator and the Radio Frequency signals.
• Input IP3: The Input Third-Order Intercept Point is a remarkable 25 dBm, indicating the mixer's ability to handle high-power signals without significant distortion.

Applications

The HMC362 is ideal for a wide range of applications, including:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Military and space
• VSAT systems

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the HMC362 is no exception. It is built to meet the stringent requirements of the most demanding environments, ensuring consistent performance and durability.

Package and Supply

The HMC362 is supplied in a compact and robust surface-mount package, which is conducive to streamlined PCB design and mass production. The device operates over a -55°C to +85°C temperature range and requires a supply voltage of +5V.

For detailed specifications, application notes, and evaluation kits, customers are encouraged to visit the official Analog Devices Inc. website or contact their sales and support team.
