The HMC349LP4CETR from Analog Devices Inc. is a high-performance, single-pole double-throw (SPDT) non-reflective switch that operates within the frequency range of DC to 10 GHz. This versatile switch is a critical component for applications that require efficient signal routing, such as in RF and microwave communication systems, test equipment, and military end-uses.

Key Features

• Frequency Range: The device boasts a wide operating frequency range from DC to 10 GHz, making it suitable for a variety of high-frequency applications.
• Insertion Loss: It offers a low insertion loss, typically 1.5 dB at 10 GHz, ensuring minimal signal attenuation during the switching process.
• Isolation: High isolation performance, typically 40 dB at 10 GHz, provides excellent signal separation between the two output ports.
• Switching Speed: The HMC349LP4CETR features fast switching speed with a typical switching time of 6 ns, facilitating rapid signal changes.
• Power Handling: It is capable of handling up to 23 dBm of input power, making it robust enough for most signal routing applications.
• Control Voltage: The switch operates with a single positive control voltage ranging from 0 to +5V, simplifying the power supply requirements.

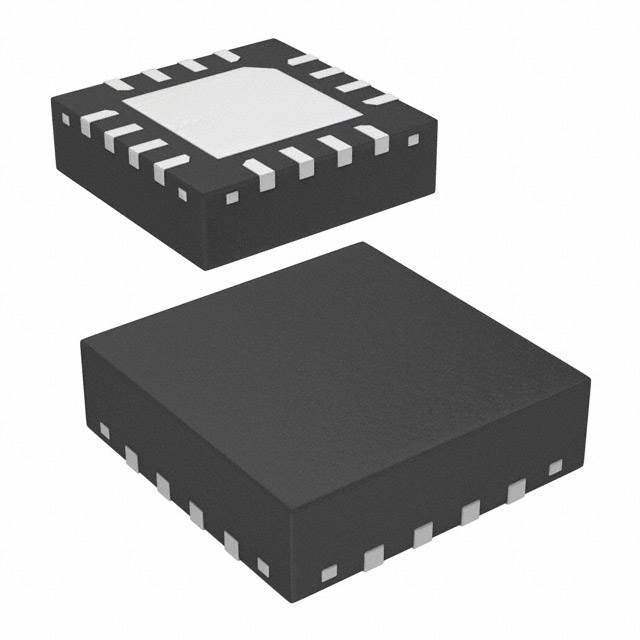

• Package: Packaged in a compact 4x4 mm QFN package, the HMC349LP4CETR is designed for space-constrained applications.

Applications

The HMC349LP4CETR is ideal for a range of applications, including:

• Wireless infrastructure (GSM, PCS, DCS, WiMAX, LTE)
• Fiber optic and broadband telecom
• Microwave radio and VSAT
• Military radios, radars, and ECM systems
• Test equipment and sensors

Quality and Reliability

Analog Devices Inc. is known for its high-quality products, and the HMC349LP4CETR is no exception. It is designed to meet stringent quality standards, ensuring reliable performance in the most demanding environments. With its combination of performance, efficiency, and reliability, the HMC349LP4CETR is an excellent choice for your high-frequency switching needs.
