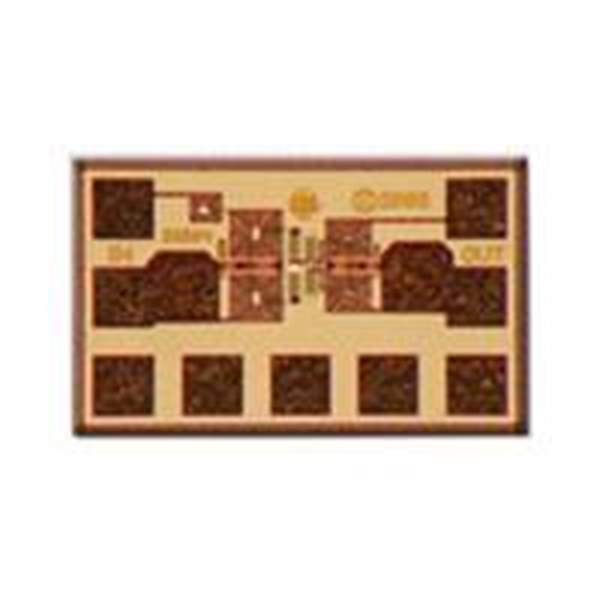

The Analog Devices HMC331 is a high-performance, gallium arsenide (GaAs) monolithic microwave integrated circuit (MMIC) surface-mount technology (SMT) double-balanced mixer. This device is designed to provide excellent RF performance suitable for a wide range of applications, including military, space, and telecommunications.

Key Features

• Wide Frequency Range: The HMC331 operates over a broad frequency range, from 5 GHz to 20 GHz in the RF and LO frequency bands, with an intermediate frequency (IF) range of DC to 4 GHz. This wide frequency range makes it versatile for various high-frequency mixing applications.
• High Isolation: The mixer exhibits high isolation between ports, minimizing potential signal leakage and ensuring a clean mixing process. This feature is crucial for systems where signal integrity is paramount.
• Excellent Conversion Loss: With a typical conversion loss of 9 dB, the HMC331 provides an efficient mixing process, ensuring that signal strength is maintained across the frequency translation.
• Passive Design: Being a passive device, the HMC331 does not require a DC bias, simplifying circuit design and reducing power consumption.
• Robust Packaging: The HMC331 is available in a compact, RoHS-compliant, 3x3 mm surface-mount leadless package, which is suitable for space-constrained applications and enables easy integration into a variety of circuit designs.

Applications

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Satellite communication systems
• Military and space applications
• LO frequency generation systems

The HMC331 from Analog Devices is a testament to the company's commitment to providing innovative solutions for complex RF and microwave signal processing challenges. With its combination of wide frequency range, high isolation, low conversion loss, and passive operation, the HMC331 is an ideal choice for designers looking to create high-performance, reliable, and efficient systems.
