The HMC292ALC3B from Analog Devices Inc. is a high-performance, gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT) monolithic microwave integrated circuit (MMIC) amplifier designed for a wide range of RF applications. This product is known for its high gain, wide bandwidth, and excellent linearity, making it an ideal choice for telecommunications, space, and military systems.

Key Features

• Frequency Range: The HMC292ALC3B operates over a broad frequency range, typically from DC to 20 GHz, providing versatility for various high-frequency applications.
• Gain: It offers a high gain of typically 13 dB, ensuring strong signal amplification.
• Output Power: The amplifier provides an output power of +25 dBm at 1 dB gain compression, making it suitable for driving high-power systems.
• Supply Voltage: This MMIC amplifier operates on a supply voltage of +5V, accommodating standard power supplies.

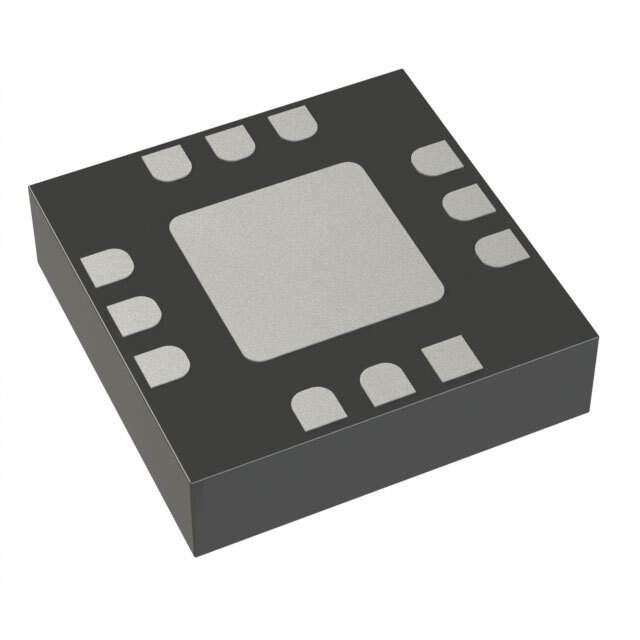

• Package: It comes in a compact 3x3 mm surface-mount leadless chip carrier (LCC) package, which is ideal for space-constrained applications.
• RoHS Compliant: The HMC292ALC3B is RoHS compliant, adhering to environmental standards and regulations.

Applications

The versatility of the HMC292ALC3B allows it to be used in a variety of RF and microwave applications, including:

• Test instrumentation
• Telecommunications and satellite communications
• Military radar and electronic warfare
• Fiber optic systems
• Point-to-point and point-to-multipoint radios

Performance and Quality

Analog Devices Inc. is renowned for its commitment to quality and performance, and the HMC292ALC3B is no exception. With its robust design and manufacturing process, this MMIC amplifier delivers consistent and reliable performance across a wide range of environmental conditions. Whether for commercial or defense-related purposes, the HMC292ALC3B is designed to meet the stringent requirements of the most demanding applications.
