Product Overview: HMC244G16 by Analog Devices Inc.

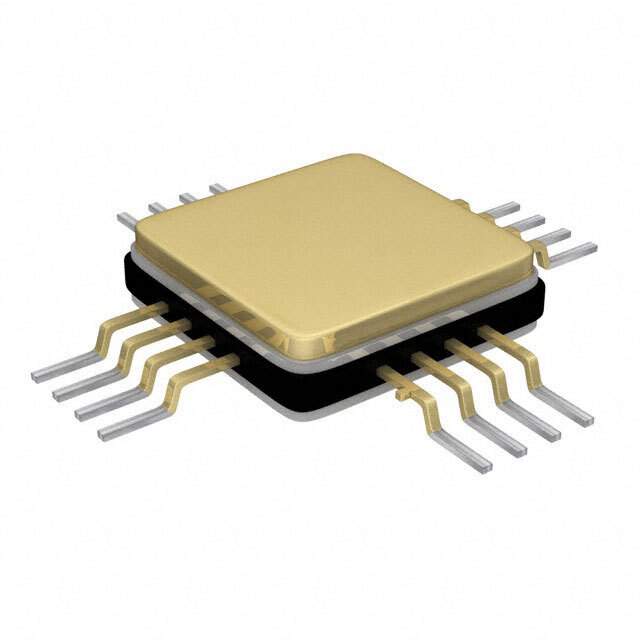

The HMC244G16 from Analog Devices Inc. is a state-of-the-art GaAs MMIC SP4T (single-pole, four-throw) non-reflective switch that operates within a frequency range of DC to 24 GHz. This high-performance component is designed for a wide variety of RF applications, such as military radar, satellite communications, test instrumentation, and fiber optic systems. The HMC244G16 is housed in a compact 16 lead ceramic 3x3mm SMT package, making it suitable for space-constrained applications.

One of the key features of the HMC244G16 is its exceptional isolation, typically greater than 45 dB, and a low insertion loss of 2.5 dB at 24 GHz. The switch also boasts a high input IP3 of 45 dBm, which makes it an ideal choice for applications requiring high linearity. The HMC244G16 can handle RF power up to 23 dBm, ensuring reliable performance even under demanding conditions.

The switch is controlled via TTL logic with a simple control voltage, requiring a dual control voltage of -5V/0V. It offers a fast switching speed of 6 ns, enabling quick transitions between RF ports, which is critical for high-speed communication systems and agile frequency-hopping applications.

With its broad frequency range and robust performance characteristics, the HMC244G16 provides a versatile solution for RF signal routing. Its non-reflective design minimizes signal disturbances and reflections, which is crucial for maintaining signal integrity in complex RF pathways. The switch is RoHS compliant and adheres to the stringent quality standards set by Analog Devices Inc., ensuring reliability and performance consistency.

For engineers and designers looking for a high-quality RF switch with excellent performance across a wide frequency spectrum, the HMC244G16 from Analog Devices Inc. offers an optimal combination of features, making it a top choice for advanced RF system designs.

Key Specifications:

• Frequency Range: DC to 24 GHz
• Isolation: >45 dB
• Insertion Loss: 2.5 dB at 24 GHz
• Input IP3: 45 dBm
• RF Power Handling: 23 dBm
• Switching Speed: 6 ns
• Control Voltage: -5V/0V (TTL)
• Package: 16 lead ceramic 3x3mm SMT
• RoHS Compliant
