Analog Devices Inc. introduces the HMC215LP4E, a high-performance, easy-to-use double-balanced mixer that is part of their HMC series. This RF/IF and RFID device is designed to cater to the needs of modern wireless applications, offering exceptional versatility and reliability.

Key Features

• Frequency Range: The HMC215LP4E operates over a wide frequency range, with an RF/LO frequency from 1.5 GHz to 4.0 GHz and an IF frequency from DC to 1.0 GHz, making it suitable for a variety of applications including satellite communications, test equipment, and broadband systems.
• Conversion Loss: It boasts a low conversion loss of 8 dB typical, which enhances overall system performance by preserving signal integrity.
• LO/RF Isolation: The device provides excellent LO/RF isolation of 45 dB typical, ensuring minimal leakage between the local oscillator and the RF signal.
• LO/IF Isolation: It also features a high LO/IF isolation of 35 dB typical, which reduces the mixing of the local oscillator signal into the intermediate frequency.
• IP3 Performance: The HMC215LP4E offers a high third-order intercept point (IP3) of 26 dBm, which is indicative of its ability to maintain linearity and dynamic range in complex signal environments.

Package and Quality

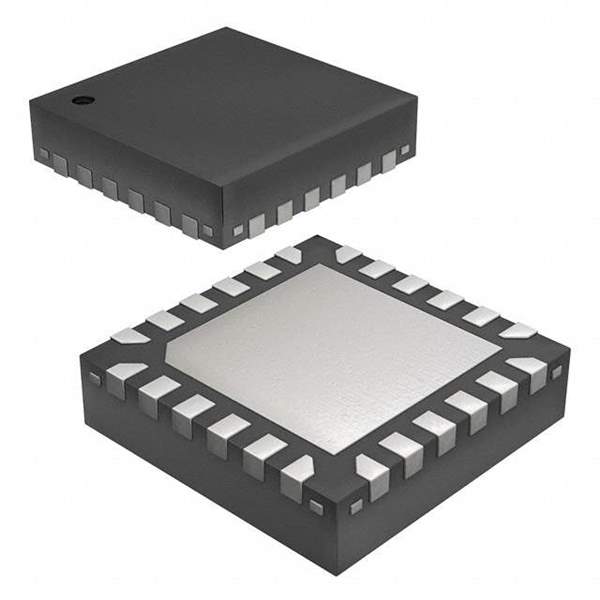

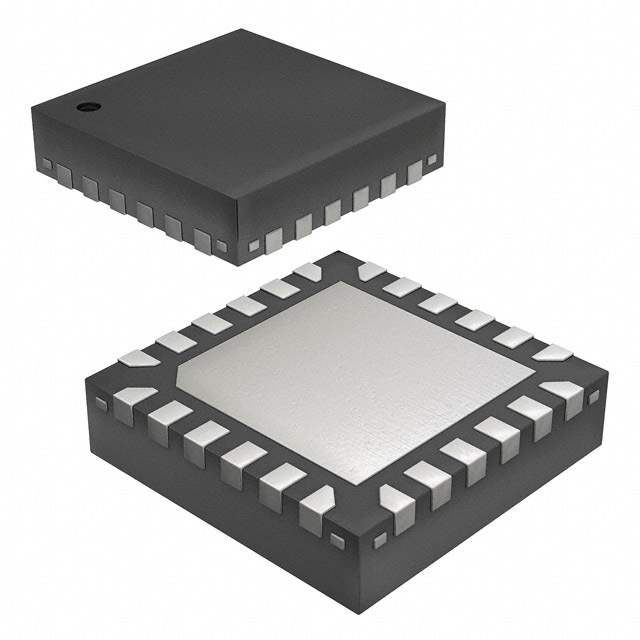

The mixer comes in a compact 4x4 mm QFN 24-lead package, which is suitable for space-constrained applications. The package is designed to facilitate easy integration into various circuit designs.

Applications

The HMC215LP4E is ideal for use in a wide range of applications, including:

• Wireless infrastructure
• Microwave radio and VSAT
• Military and space
• Test instrumentation

Conclusion

Analog Devices Inc.'s HMC215LP4E is a versatile and high-performing component that embodies the company's commitment to delivering superior RF solutions. With its broad frequency range, low conversion loss, and high isolation levels, this mixer is poised to meet the rigorous demands of contemporary wireless communication systems.
