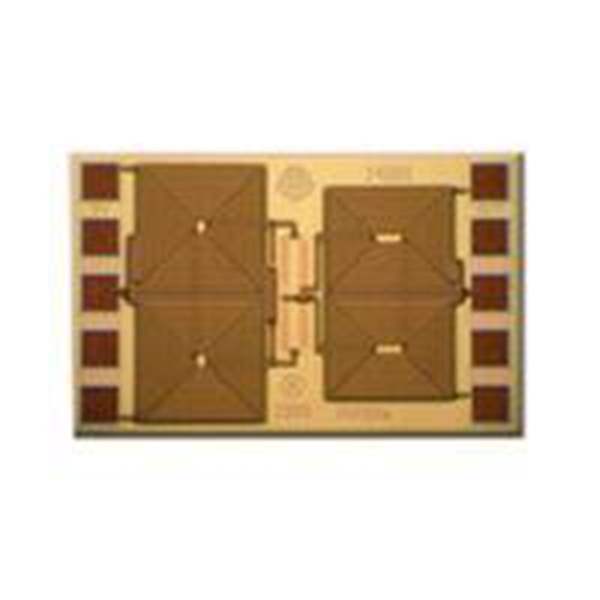

The HMC156A, developed by Analog Devices Inc., is a high-performance, passive double-balanced mixer that offers a versatile solution for a variety of RF and IF applications. Designed to operate over a wide frequency range, this mixer is well-suited for use in telecommunications, test equipment, and military systems, among other high-frequency signal processing applications.

The HMC156A is capable of working across an RF and LO frequency range of 1.5 GHz to 4.5 GHz, while the IF frequency range spans from DC to 1.5 GHz. This broad frequency coverage ensures that the device can be integrated into multiple stages of a signal chain without the need for additional components, simplifying the overall design and reducing system complexity.

One of the standout features of the HMC156A is its exceptional conversion loss, typically 8 dB, which contributes to the mixer's excellent signal fidelity. The mixer also boasts a high LO to RF isolation of 45 dB, ensuring that the local oscillator signal does not leak into the RF path and degrade the overall system performance. The input IP3 (third-order intercept point) of 15 dBm is indicative of the mixer's ability to handle high signal levels without significant distortion, making it an ideal choice for systems that require a clean and linear response.

The HMC156A is available in a compact surface-mount package, which allows for easy integration into space-constrained applications. Its robust construction and proven reliability make it a preferred choice for designers looking to enhance their RF and IF signal processing capabilities with minimal impact on the form factor of their systems.

In summary, the HMC156A from Analog Devices Inc. is a versatile and high-performance mixer that delivers on both functionality and reliability. With its wide frequency range, low conversion loss, and high isolation, it stands as a valuable component for engineers who demand precision and quality in their RF designs.
