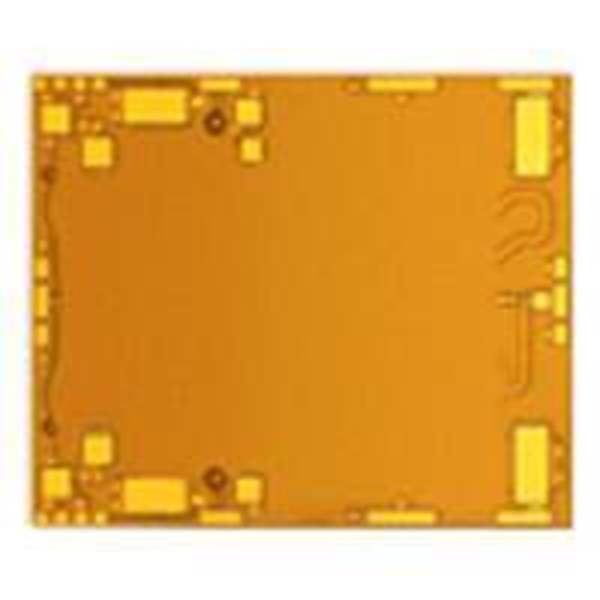

HMC1086-SX Analog Devices Inc.
Same model may have multiple batches, images only for reference.

HMC1086-SX

Part No HMC1086-SX
Manufacturer Analog Devices Inc.
Catalog RF Amplifiers
Description IC RF AMP GPS 2GHZ-6GHZ DIE
Datasheet
HMC1086-SX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The HMC1086F10 is a 25W Gallium Nitride (GaN) MMIC Power Amplifier which operates between 2 and 6 GHz, and is provided in a 10-lead flange mount package. The amplifier typically provides 23 dB of small signal gain, +44.5 dBm saturated output power, and delivers +46 dBm output IP3 at +33 dBm output power per tone. The amplifier draws 1100 mA quiescent current from a +28V DC supply. The RF I/Os are DC blocked and matched to 50 Ohms for ease of use.
