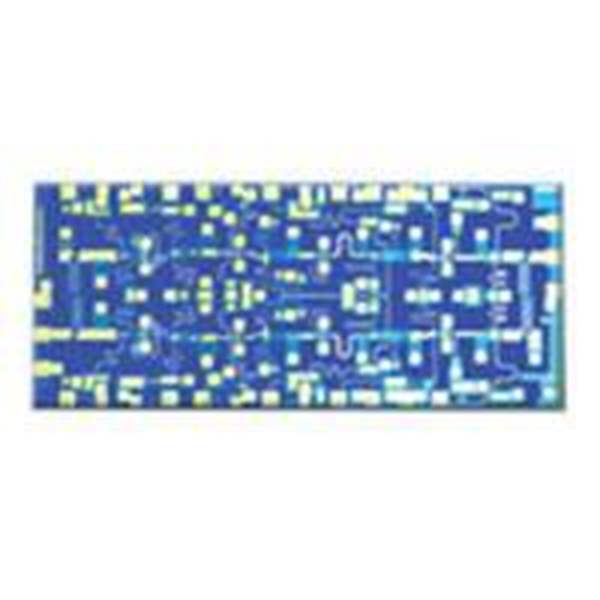

The HMC-ABH241 is a four-stage GaAs HEMT MMIC medium power amplifier which operates between 50 and 66 GHz. The HMC-ABH241 provides 24 dB of gain and an output power of +17 dBm at 1 dB compression from a +5 V supply voltage. All bond pads and the die backside are Ti/Au metallized, and the amplifier device is fully passivated for reliable operation.
The HMC-ABH241 GaAs HEMT MMIC medium power amplifier is compatible with conventional die attach methods, as well as thermocompression and thermosonic wire bonding, making it ideal for MCM and hybrid microcircuit applications. All data shown herein is measured with the chip in a 50 Ohm environment and contacted with RF probes.
